Chattanooga Intelect® RPW 2 Radial Pressure Wave Shockwave Therapy System

The Chattanooga Intelect® RPW 2 is an advanced radial pressure wave therapy system designed to help clinicians treat pain, inflammation, and connective tissue dysfunction in a wide range of orthopedic and sports medicine applications. Using pneumatically generated radial pressure wave technology, the RPW 2 delivers low-energy acoustic pressure pulses that target tissue from the surface to deeper musculoskeletal structures, making it a strong option for clinics treating conditions such as plantar fasciitis, Achilles tendinopathy, tendinopathies, and myofascial trigger points.

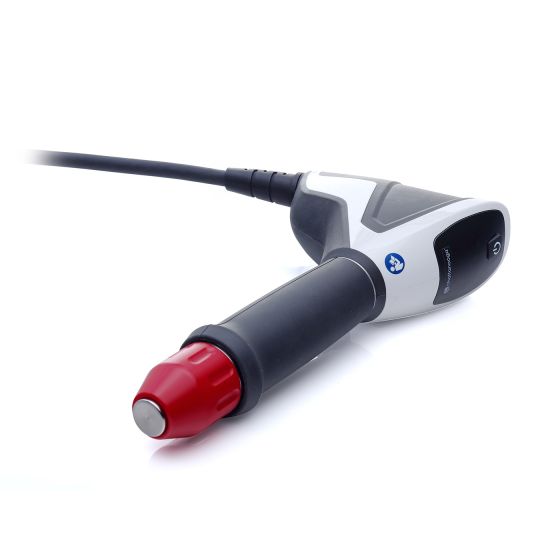

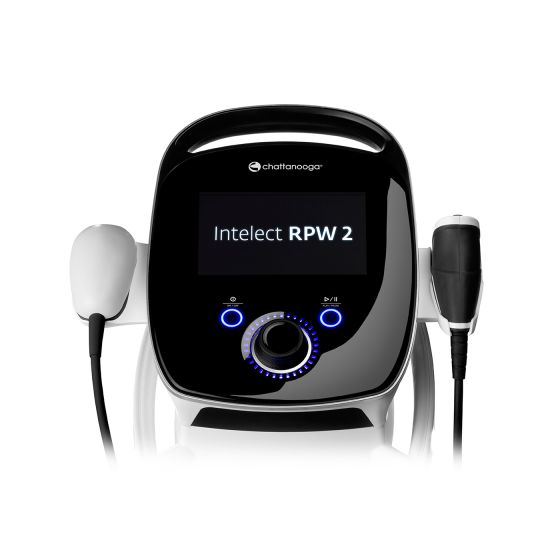

Built for modern clinical workflow, the Intelect® RPW 2 features a 7-inch capacitive color touchscreen, intuitive navigation, and compatibility with the ergonomic Falcon® handpiece for efficient, comfortable treatment delivery. The system offers a pressure range of 0.3 to 5.0 bar in 0.1 bar increments and pulse frequency up to 21 Hz with the Falcon® handpiece, giving providers the flexibility to tailor treatment to the patient and indication.

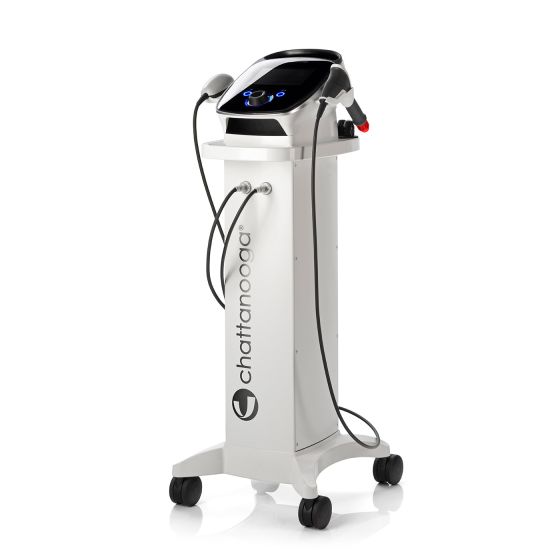

Designed to improve both patient comfort and clinician usability, the RPW 2 also offers advanced workflow features such as built-in treatment guidance and optional Intelect® Connect App compatibility for treatment data handling and reporting. Its slim profile and mobile cart design make it an easy fit for busy rehab clinics, sports medicine facilities, chiropractic offices, and multidisciplinary treatment rooms.

Key Benefits

• Advanced radial pressure wave technology for pain and inflammation management
• Ideal for orthopedic, sports medicine, physical therapy, and rehab settings
• 7-inch capacitive color touchscreen for easy operation
• Falcon® handpiece compatibility for responsive, ergonomic treatment delivery
• Broad pressure and frequency settings for treatment flexibility
• Designed to support efficient workflows and improved patient comfort

Specifications

• Power: 120V AC, 50–60Hz, 350VA
• Compressed Air Output: 0.3–5.0 bar
• Increment Settings: 0.1 bar
• Pulse Frequency: 1–21 Hz with Falcon® handpiece
• Operating Modes: Single pulse or continuous
• User Interface: 7-inch color graphic capacitive touchscreen
• Dimensions (W × H × D): 16.15" × 16.54" × 43.31"
• Weight: 66.14 lbs.

Warranty & Maintenance

The Chattanooga Intelect® RPW 2 includes a 3-year manufacturer warranty on the main unit. The Falcon® handpiece is covered for 2 years or 3 million shocks, whichever occurs first, and shock transmitters are covered for 1 year or 1 million shocks, whichever occurs first. Warranty coverage is subject to manufacturer terms and exclusions, and damage caused by misuse, negligence, or unauthorized repair is generally not covered.

To help maximize performance and longevity, proper routine maintenance is recommended. Manufacturer service guidance indicates the Falcon® handpiece should be overhauled around every 1 million shocks, and regular cleaning and drying of the handpiece components, including the transmitters and projectile, is important for long-term reliability.
