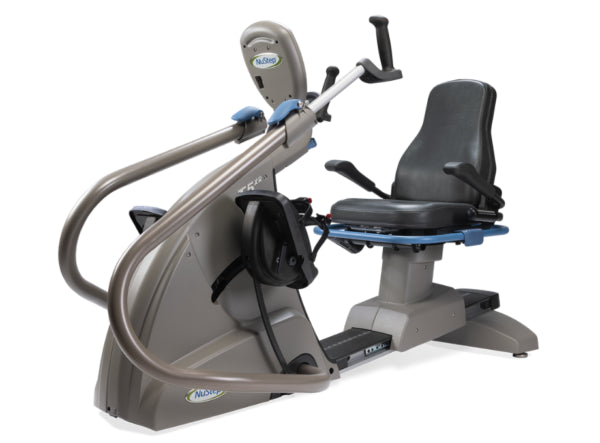

NuStep® T5XRW Recumbent Cross Trainer

The NuStep® T5XRW Recumbent Cross Trainer delivers accessible, low-impact, total-body exercise with an extra-wide seat and high weight capacity designed to accommodate a diverse range of users. Featuring a 22-inch-wide seat, 600 lb. weight capacity, 15 resistance levels, and extensive adjustability, the T5XRW is an ideal exercise solution for physical therapy, rehabilitation, cardiac rehabilitation, senior living, medical fitness, wellness, and fitness environments.

As the most inclusive model in the NuStep® T5 Series, the T5XRW combines smooth upper- and lower-body movement with a comfortable seated exercise position. Its low-inertia startup requires minimal effort to initiate movement, while the user-controlled step length allows each individual to exercise within a comfortable range of motion.

Extra-Wide Seat & 600 lb. Weight Capacity

A defining feature of the NuStep® T5XRW is its 22-inch extra-wide seat, providing additional room and support for users who may benefit from a larger seating surface.

Combined with a 600 lb. user weight capacity, the T5XRW provides rehabilitation and wellness facilities with an inclusive exercise solution capable of accommodating a broad patient and user population.

The ergonomically designed padded seat features contoured back support for a stable and supportive exercise position. The seat also reclines an additional 12 degrees, allowing users to customize their positioning for comfort and exercise needs.

Accessible Low Step-Through Design

The T5XRW features a low step-through design that helps simplify access to the machine, particularly for users with limited mobility.

A 360-degree swivel seat that locks every 45 degrees allows users to approach and transfer onto the cross trainer from multiple positions. Adjustable arm and seat positions further accommodate different body sizes and exercise positions, while 40-degree rotating hand grips help users establish a comfortable upper-body position.

These accessibility features make the T5XRW particularly well suited for physical therapy, rehabilitation, senior living, skilled nursing, and adaptive fitness environments.

Engaging LCD Display & 13 Workout Programs

The NuStep® T5XRW features a large, easy-to-read LCD display console that allows users to monitor exercise performance, adjust resistance levels, and select from 13 workout programs.

Available programs and features include:

• Quick Start – Begin exercising without setting specific goals

• Pace Partner – Helps users maintain a consistent exercise pace

• Target Heart Rate – Helps users exercise within a selected heart-rate range

• Constant Speed/Power – Maintains a consistent speed or workload

• Client Profiles – Five profiles for interval training

Contact heart-rate handles provide additional feedback during exercise, helping users monitor workout intensity.

15 Levels of Resistance

With 15 adjustable resistance levels, the T5XRW allows exercise intensity to be customized to individual abilities and goals.

Low-inertia startup helps users initiate movement with minimal effort, while progressively higher resistance settings provide opportunities to increase exercise intensity as strength, endurance, and cardiovascular conditioning improve.

This broad resistance range makes the T5XRW suitable for users ranging from rehabilitation patients and older adults to individuals pursuing more challenging fitness and conditioning goals.

StrideLock™ for Added Transfer Stability

The integrated StrideLock™ system securely locks the handles and pedals in place, providing additional stability while users access, exit, or reposition themselves on the T5XRW.

This feature can be particularly beneficial in rehabilitation, senior living, skilled nursing, and other clinical environments where accessibility and transfer stability are important considerations.

Optional Flex-Foot System

The Flex-Foot System is available as an optional upgrade for the T5XRW. Designed to support natural foot positioning, the system provides additional flexibility for facilities and users with specific positioning or exercise requirements.

Low-Impact Total-Body Exercise

The T5XRW coordinates upper- and lower-body movement to provide an effective low-impact cardiovascular and strengthening workout from a comfortable seated position.

User-controlled step length allows individuals to determine their own range of motion, while the smooth stepping action helps minimize impact on the joints. The combination of upper- and lower-body movement provides a versatile exercise experience for users with varying levels of strength, mobility, endurance, and conditioning.

Key Features

• Low-impact, total-body cardiovascular and strengthening exercise

• 22-inch extra-wide seat for enhanced accessibility and comfort

• 600 lb. user weight capacity

• Low step-through design for easier access

• Low-inertia startup accommodates varying functional abilities

• User-controlled step length with smooth stepping motion

• 15 adjustable resistance levels

• 13 workout programs

• Large, easy-to-read LCD display console

• Contact heart-rate handles

• Quick Start exercise program

• Pace Partner exercise program

• Target Heart Rate exercise program

• Constant Speed/Power exercise program

• Five Client Profiles for interval training

• StrideLock™ locks the handles and pedals for additional stability

• 360-degree swivel seat that locks every 45 degrees

• Ergonomically designed padded seat with contoured back support

• Seat reclines an additional 12 degrees

• Adjustable arm and seat positions

• 40-degree rotating hand grips

• Optional Flex-Foot System

• Accommodates users from 4'6" to 6'7" tall

• Designed for users ages 13 and older

• 12V battery-powered operation

Specifications

Machine Footprint: 73"L x 30"W x 46"H
Unit Weight: 300 lbs.
Wide Seat Width: 22"
User Weight Capacity: 75–600 lbs.
User Height Range: 4'6"–6'7"
Recommended User Age: 13 years and older
Resistance Levels: 15
Workout Programs: 13
Seat Rotation: 360°, locking every 45°
Seat Recline: Additional 12°
Hand Grip Rotation: 40°
Power: 12V battery
Warranty: 10-year frame, 3-year parts, and 1-year labor

Ideal Applications

The NuStep® T5XRW Recumbent Cross Trainer is an excellent choice for:

• Physical therapy and rehabilitation clinics

• Hospitals and outpatient rehabilitation departments

• Cardiac and pulmonary rehabilitation programs

• Bariatric rehabilitation and wellness programs

• Senior living communities

• Skilled nursing and long-term care facilities

• Post-acute rehabilitation facilities

• Medical fitness and wellness centers

• Adaptive fitness and wellness programs

• Athletic training and sports medicine facilities

• Commercial fitness facilities

• Home exercise environments

With its combination of a 22-inch extra-wide seat, 600 lb. weight capacity, 15 resistance levels, 13 workout programs, reclining 360-degree swivel seat, StrideLock™ technology, and accessible low-impact design, the NuStep® T5XRW provides an inclusive and versatile recumbent cross training solution for rehabilitation, wellness, and fitness environments.
