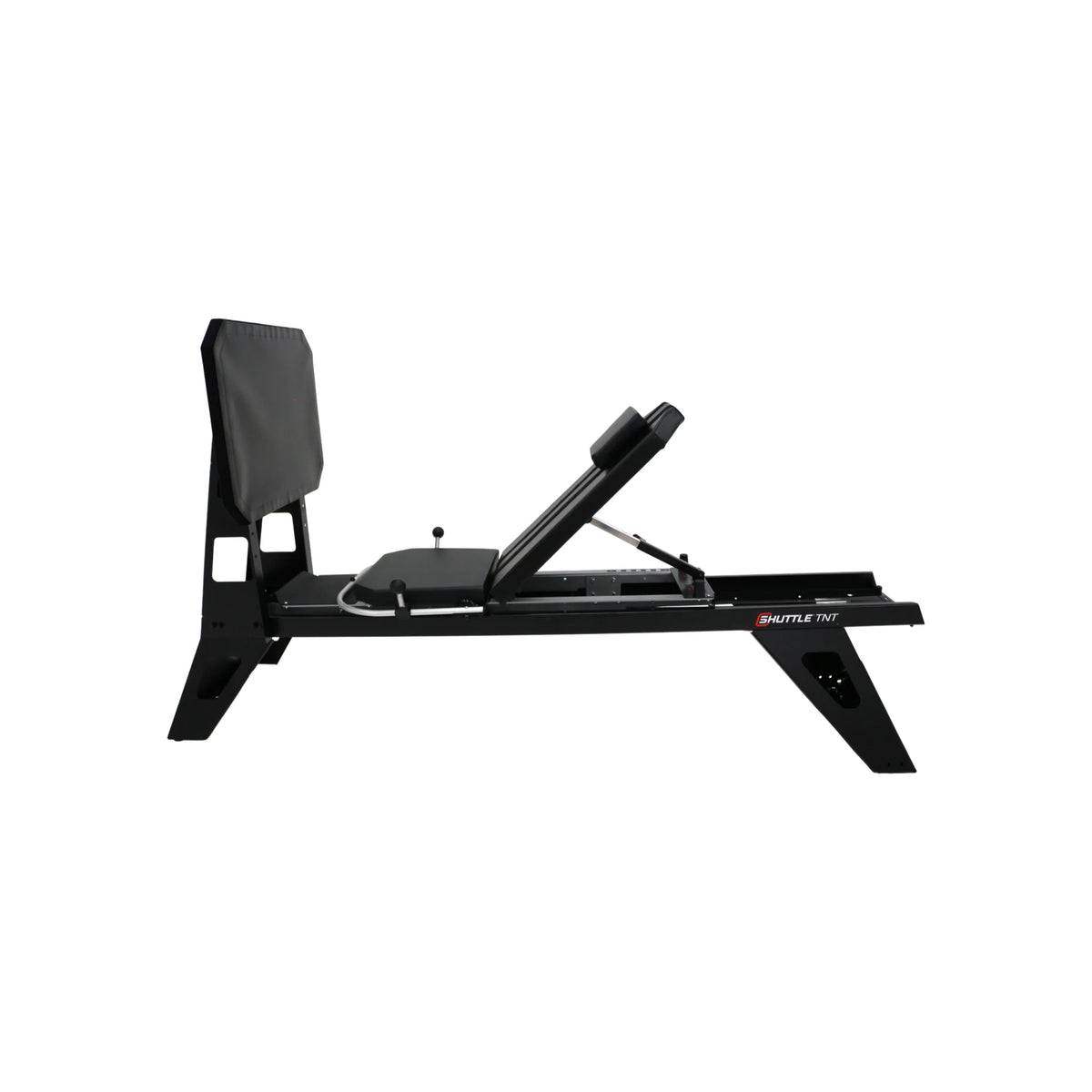

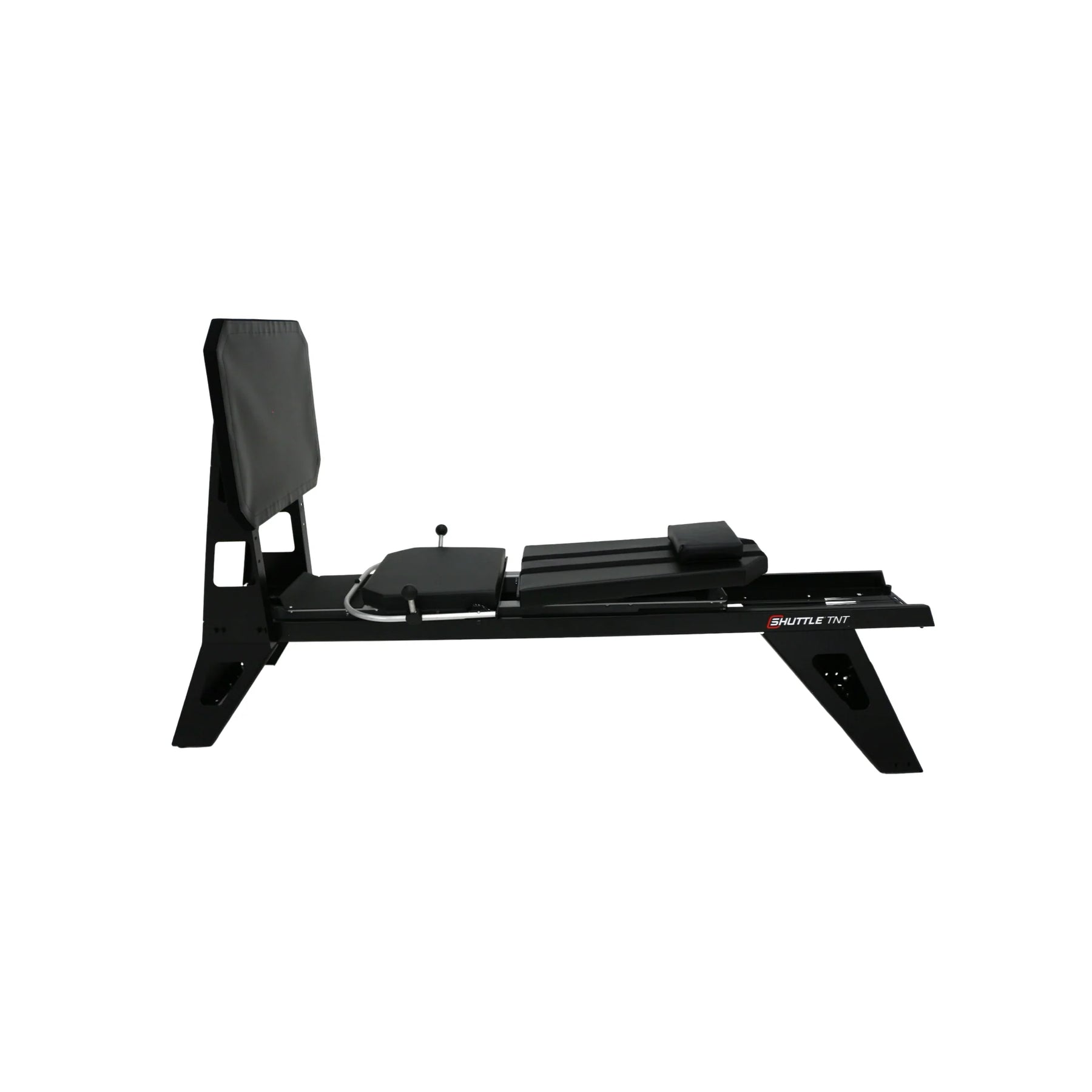

Shuttle Systems TNT Leg Press & Plyometric Trainer

The Shuttle Systems TNT Leg Press & Plyometric Trainer combines therapeutic exercise, progressive strengthening, and athletic performance training in one versatile system. TNT stands for Training ‘n’ Therapy, reflecting the machine’s ability to support activities ranging from light rehabilitation to advanced leg press and plyometric exercise.

Progressive elastic resistance ranges from 6 to 250 lb., allowing clinicians and trainers to adapt exercise intensity to the user’s strength, mobility, and rehabilitation goals. The supported supine position and padded kickplate help minimize impact on the joints and spine during closed-chain strengthening and jumping activities.

Rehabilitation, Strengthening, and Plyometric Training

The Shuttle TNT supports progressive lower-extremity rehabilitation and strengthening in a controlled, less-than-body-weight environment. Users can perform supine leg press exercises before progressing to more dynamic jumping and plyometric activities when appropriate.

This versatility allows the same machine to support multiple stages of rehabilitation, return-to-activity training, athletic development, and general lower-body conditioning.

Progressive Elasticord Resistance

The Shuttle TNT uses progressive Elasticord resistance instead of traditional weight stacks or plates. Resistance increases as the cords stretch, providing progressively greater loading throughout the movement.

The machine includes eight Elasticords:

• One 6 lb. Elasticord

• One 12 lb. Elasticord

• Six 25 lb. Elasticords

The resistance system provides a published working range of 6 to 250 lb., giving professionals flexibility for both low-resistance rehabilitation and higher-intensity strengthening.

Adjustable Clinical Positioning

The six-position backrest adjusts to supine, 20°, 25°, 35°, 40°, and 45° positions. These settings allow clinicians and trainers to modify the user’s body position for different exercises, functional abilities, and therapeutic objectives.

An adjustable range-of-motion control changes the carriage’s starting position relative to the kickplate, helping professionals manage knee flexion and available movement. Adjustable hand grips give users additional support and stabilization during exercise.

The 24-inch seat height supports convenient access and transfers, while the carriage-mounted footrest provides a place to support an uninvolved foot during unilateral activities.

Closed-Chain Leg Press Exercise

The supine leg press position supports controlled, closed-chain lower-extremity exercise. Resistance can be gradually increased as the user develops strength, control, and confidence.

The TNT may be incorporated into programs addressing lower-extremity strengthening, functional movement, progressive weight acceptance, and return-to-activity preparation.

Reduced-Impact Plyometric Exercise

The Shuttle TNT allows jumping exercises to be performed in a supported, less-than-body-weight position. This helps reduce landing impact compared with traditional upright jumping while allowing users to work on acceleration, deceleration, and explosive lower-body movement.

The system can also emphasize the eccentric phase of overspeed plyometric training, making it suitable for advanced rehabilitation and athletic performance applications.

Key Features

• Supine leg press and plyometric training system

• Designed for rehabilitation, strengthening, and athletic performance

• Progressive Elasticord resistance from 6 to 250 lb.

• Eight included resistance cords

• Closed-chain lower-extremity exercise

• Reduced-body-weight jumping and plyometric training

• Padded kickplate to help reduce joint and spinal impact

• Six-position adjustable backrest

• Adjustable range-of-motion control

• Adjustable hand grips

• 24-inch seat height

• 40-inch carriage travel

• 450 lb. carriage capacity

• All-aluminum construction

• Carriage-mounted footrest

• Optional PNF towers and pulley system

• Compatible with optional proprioceptive and balance accessories

Technical Specifications

• Manufacturer: Shuttle Systems

• Product name: TNT Training ‘n’ Therapy Leg Press

• Part number: 7200

• Resistance range: 6–250 lb.

• Resistance system: Progressive Elasticords

• Included Elasticords: Eight

• Elasticord configuration: One 6 lb., one 12 lb., and six 25 lb. cords

• Carriage capacity: 450 lb.

• Carriage travel: 40 in.

• Seat height: 24 in.

• Backrest positions: Supine, 20°, 25°, 35°, 40°, and 45°

• Product-page footprint: 30 in. W × 101 in. L

• Recommended floor space: 3 ft. W × 10 ft. L

• Construction: Aluminum

• Power requirements: None

• Latex notice: Contains latex

Ideal for

• Physical therapy and rehabilitation clinics

• Hospitals and outpatient rehabilitation departments

• Sports medicine facilities

• Athletic training rooms

• Strength and conditioning facilities

• Sports performance centers

• Orthopedic rehabilitation programs

• Lower-extremity strengthening

• Closed-chain therapeutic exercise

• Progressive leg press exercise

• Reduced-body-weight plyometric training

• Return-to-sport programs

• Active-aging and wellness facilities

Optional Accessories

Available accessories include:

• PNF towers and pulley system

• Proprioceptive disk

• Wobble board

The optional PNF pulley system expands the TNT’s capabilities to include upper-body exercises performed while lying, sitting, kneeling, or positioned beside the machine.

Please note that optional accessories are sold separately unless specifically included in the selected package.

Warranty

• Bolted metal frames, stands, towers, kickplate frame and board, and carriage frame: Limited lifetime

• Pulley systems, carriage handles, and wheels: 5 years

• Upholstery, headrest, kickplate face, harnesses, and grips: 2 years

• Elasticords, rebound elastics, lock knobs, torque handles, and other parts: 1 year

Warranty coverage applies to the original retail purchaser and is subject to the manufacturer’s complete warranty terms and conditions.

Contact Cornish Medical for current pricing, availability, accessory compatibility, delivery options, and assistance configuring the Shuttle Systems TNT for your rehabilitation or performance facility.
