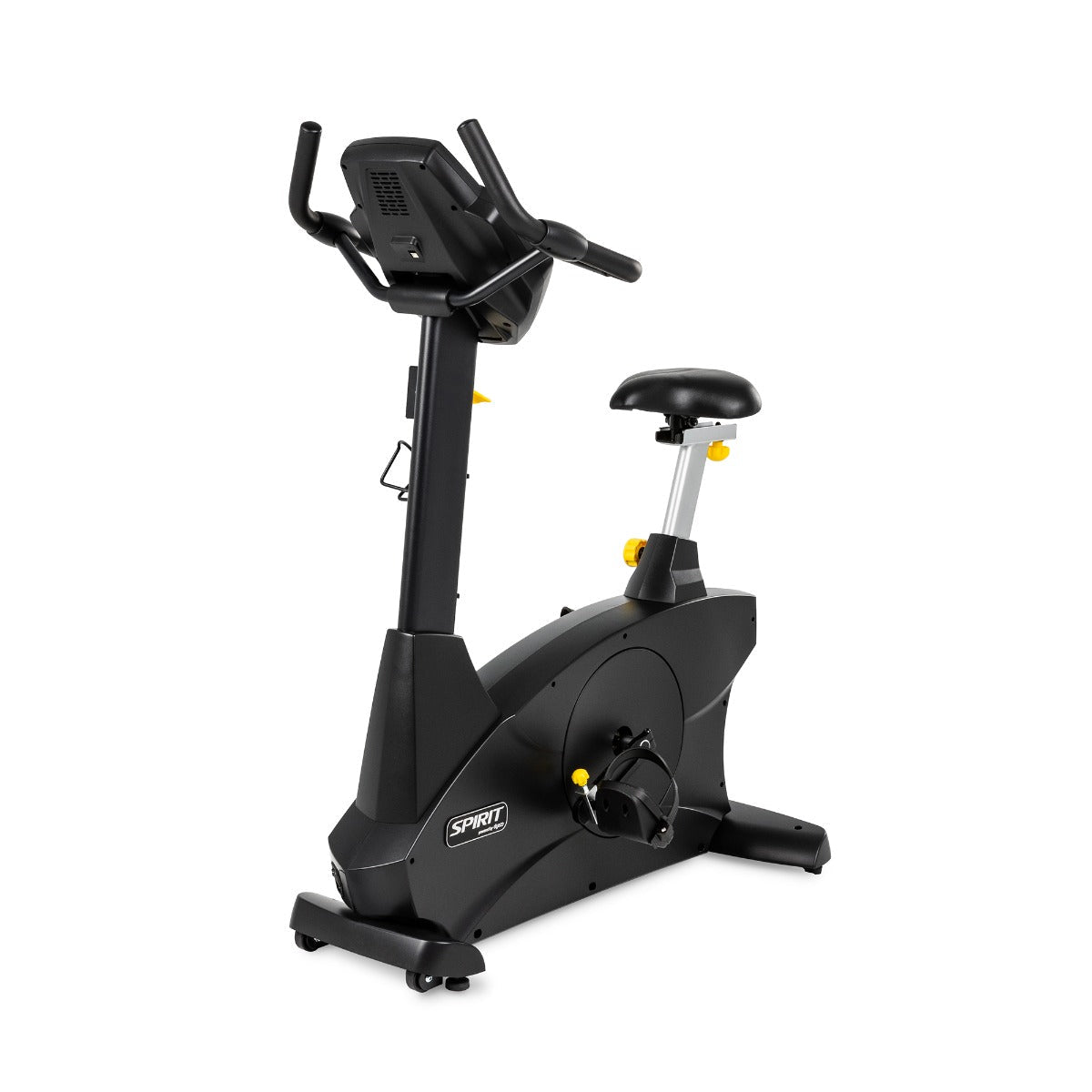

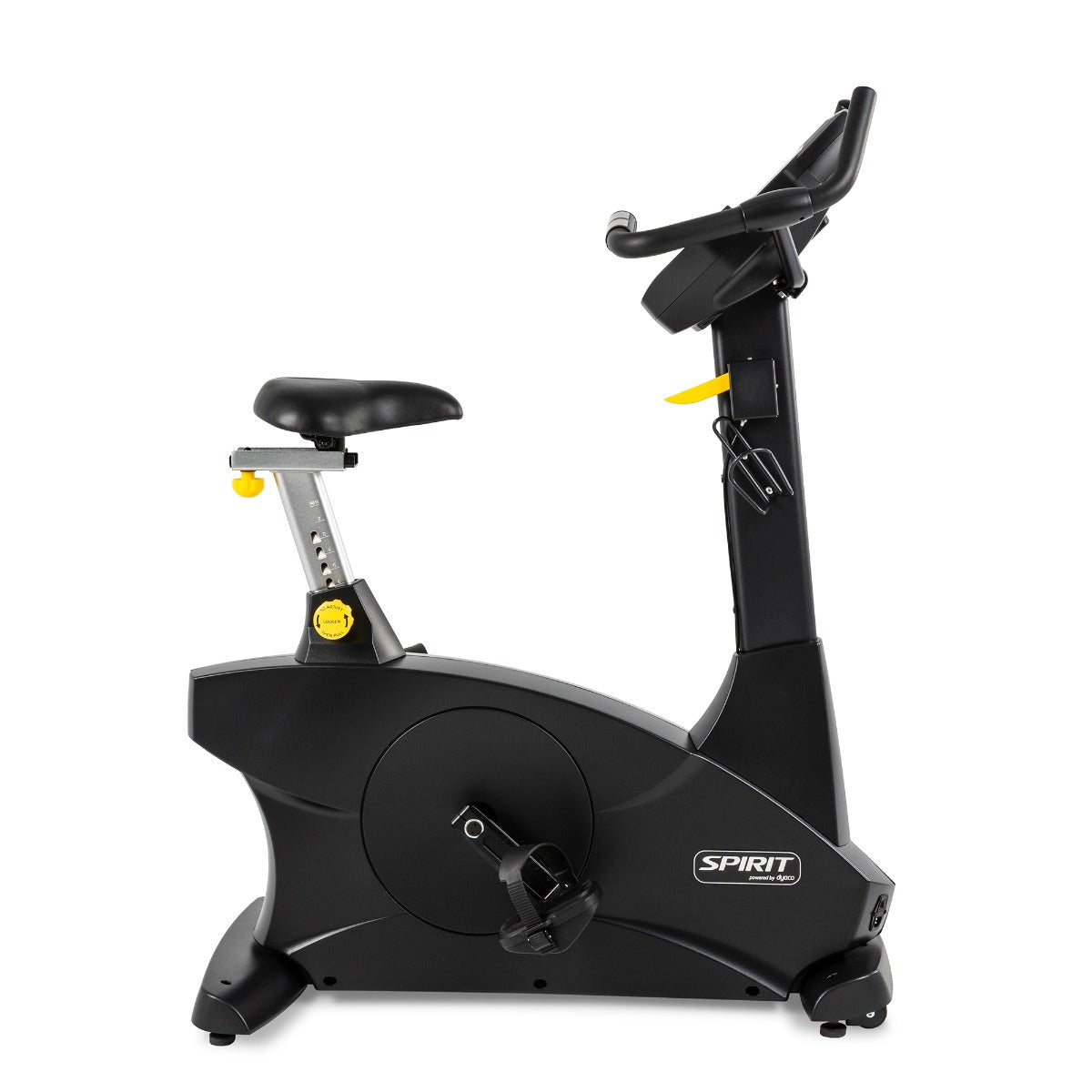

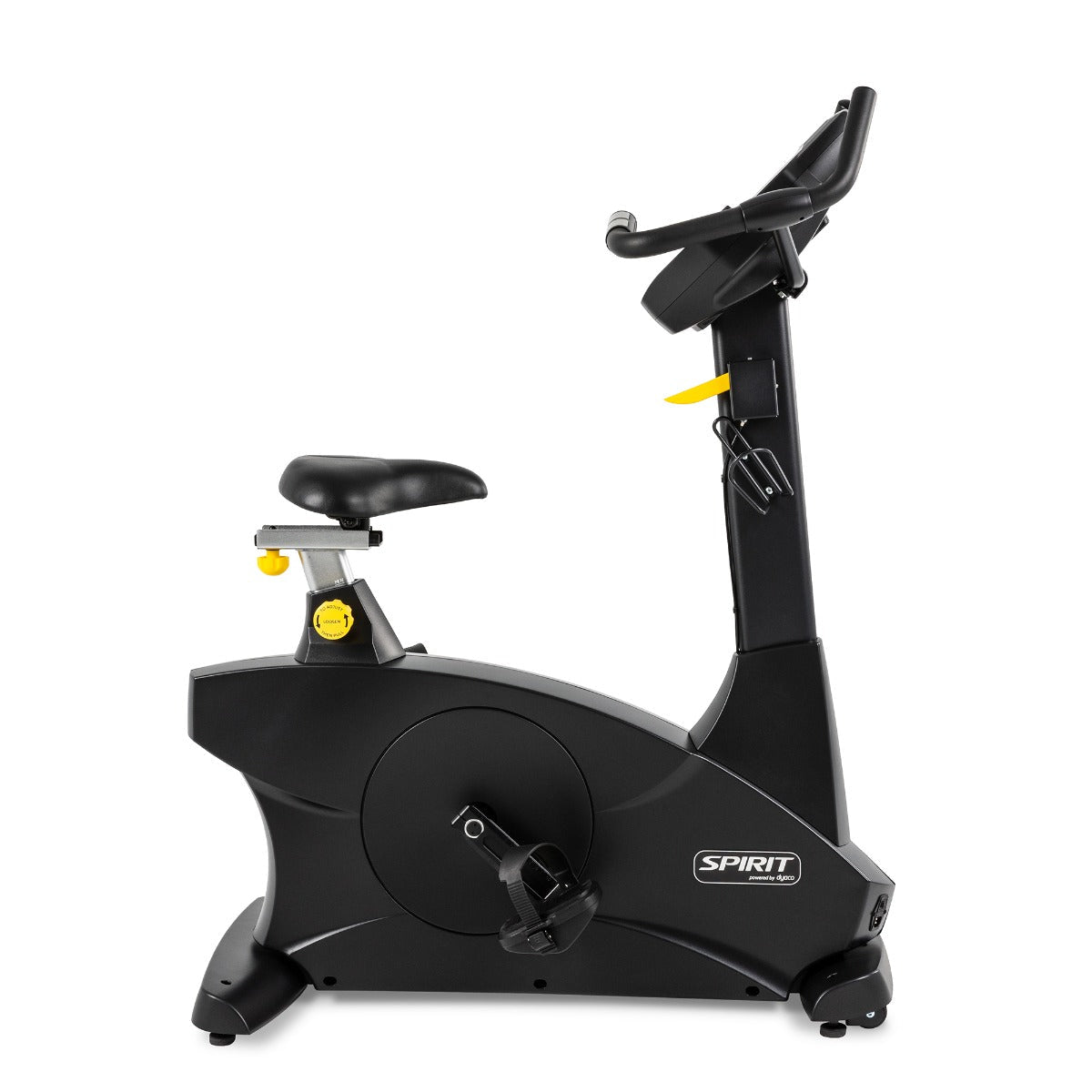

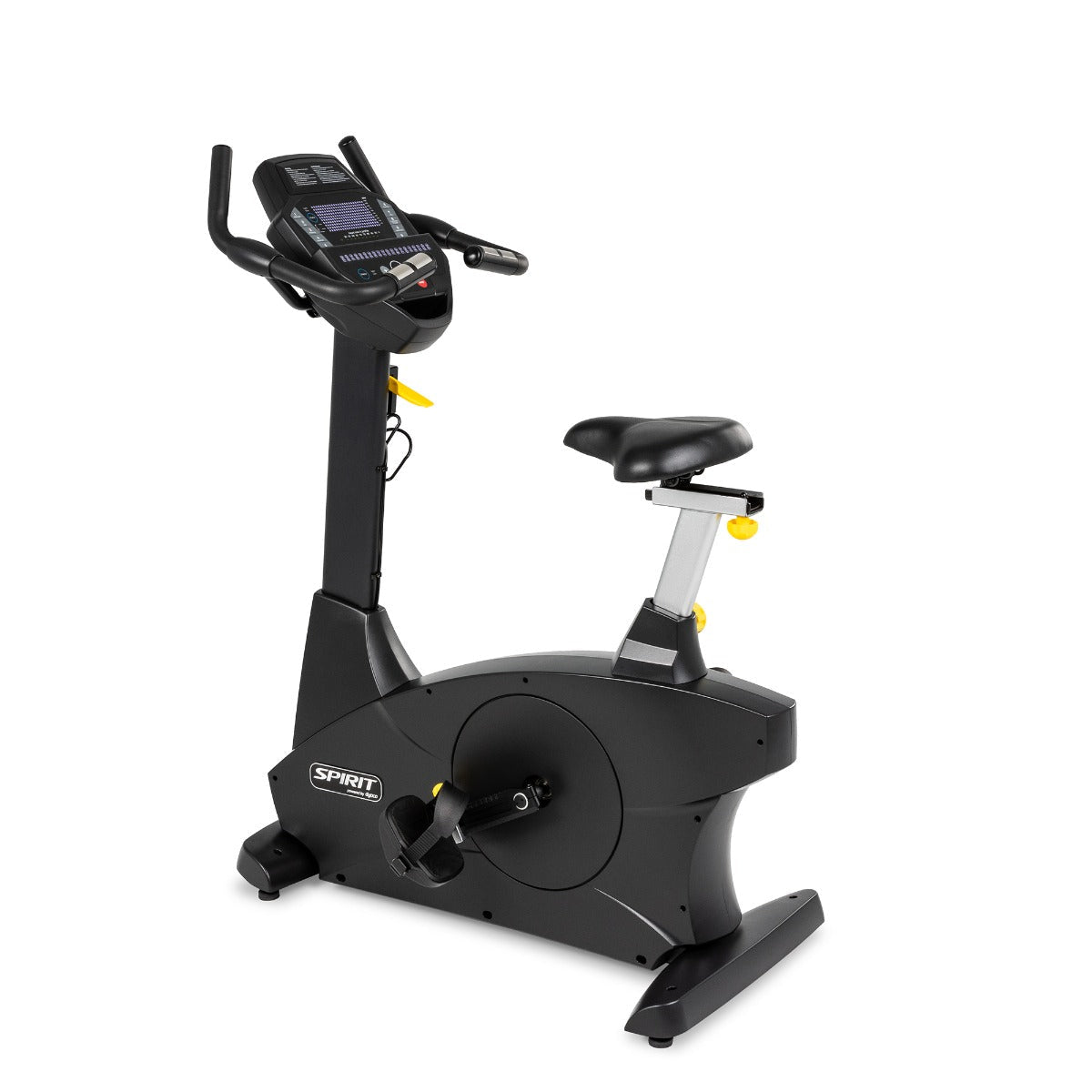

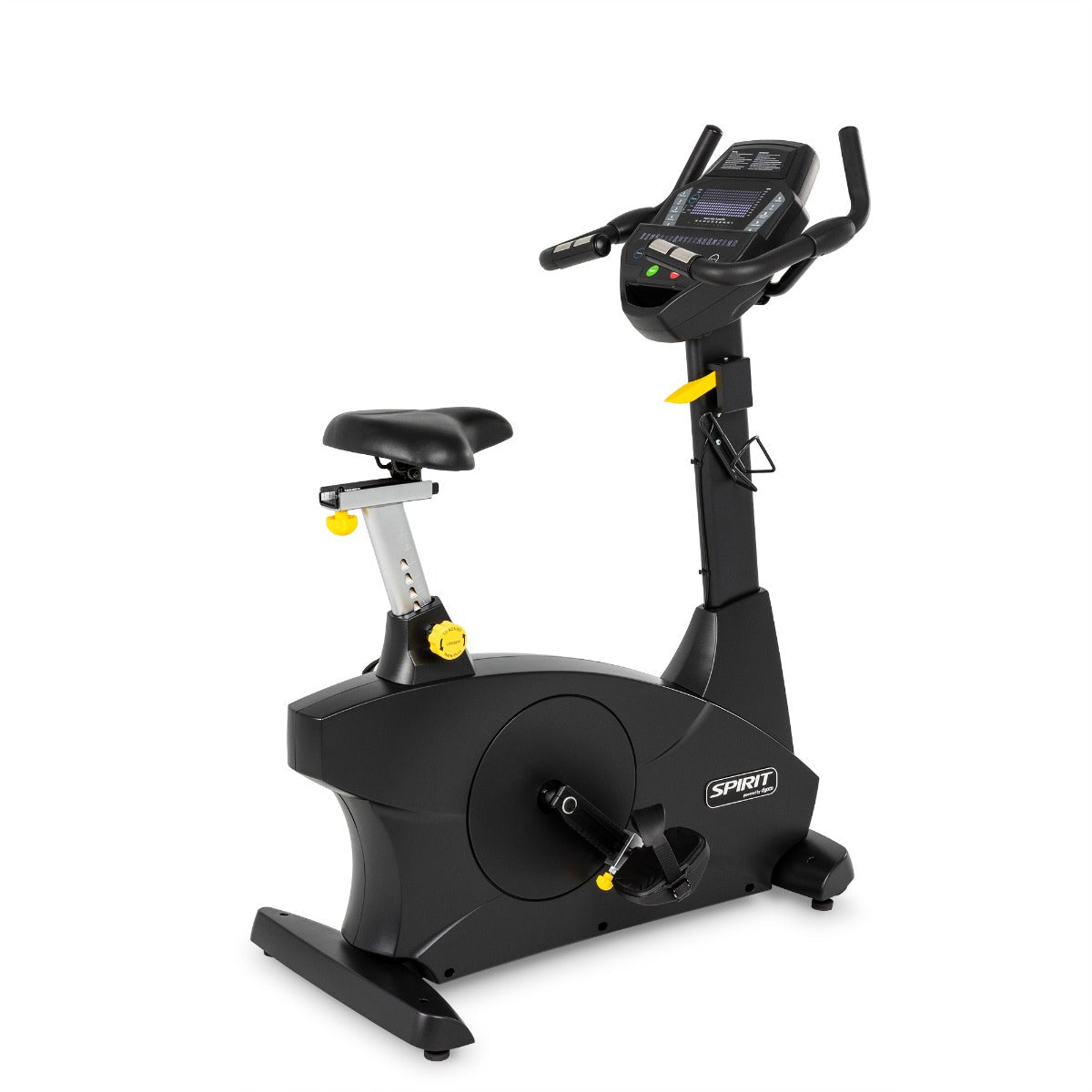

SPIRIT Fitness 7.0U Rehabilitation Upright Bike with Adjustable Crank Arms

The SPIRIT Fitness 7.0U Rehabilitation Upright Bike is engineered for physical therapy, rehabilitation, and professional healthcare environments where precise resistance control, range-of-motion accommodation, patient positioning, and progressive therapeutic exercise are essential.

Designed as a low-impact lower-body rehabilitation solution, the SPIRIT 7.0U features 50 levels of bidirectional resistance, adjustable crank arms, and multiple resistance modes to accommodate a wide range of users and rehabilitation protocols. Its dual electromagnetic resistance system supports both constant power and isokinetic exercise, providing clinicians with greater flexibility when developing individualized therapeutic exercise programs.

A fully adjustable high-density foam seat helps establish proper positioning, while the adjustable crank length allows clinicians to accommodate different ranges of motion. With a workload range of 5 to 1700 watts, recommended user height range of 4'10" to 6'6", and 440 lb. maximum user weight, the SPIRIT 7.0U is designed for demanding clinical rehabilitation environments.

Designed for Rehabilitation & Physical Therapy

The SPIRIT Fitness 7.0U combines the familiar positioning of an upright exercise bike with advanced features designed specifically for rehabilitation and therapeutic exercise.

Its upright riding position promotes proper posture and alignment, while the adjustable seat and crank arms allow clinicians to customize the bike to individual users.

The 7.0U's 50 levels of bidirectional resistance expand exercise possibilities by allowing users to pedal in both directions against controlled resistance. This versatility can support individualized lower-extremity rehabilitation, therapeutic exercise, and progressive conditioning programs.

Key Features

• 50 levels of bidirectional resistance

• Dual electromagnetic resistance system

• Adjustable crank arms to accommodate range of motion

• Constant power resistance mode

• Isokinetic speed-based resistance from 25–100 RPM

• 5–1700 watt workload range

• Fully adjustable high-density foam seat

• Numbered seat adjustment for easier positioning

• Recommended for users from 4'10" to 6'6"

• 440 lb. maximum user weight

• Heavy-duty 8-groove Poly-V belt drive system

• Intuitive white LED display

• 20-character message window

• Multiple preset and customizable exercise programs

• 5 kHz wireless heart rate receiver

• USB Type-B ports for data transfer

• CSAFE connectivity

• Commercial rehabilitation design

Adjustable Crank Arms for Range-of-Motion Training

One of the defining rehabilitation features of the SPIRIT 7.0U is its adjustable crank arm system.

Adjustable crank length allows the pedaling motion to be modified based on the user's available range of motion. This provides clinicians with greater flexibility when establishing an appropriate cycling movement for individualized therapeutic exercise.

As mobility and range of motion progress, crank positioning can be adjusted to accommodate changing rehabilitation goals.

50 Levels of Bidirectional Resistance

The SPIRIT 7.0U provides 50 levels of bidirectional resistance, allowing resistance to be applied during both forward and reverse pedaling.

Bidirectional operation expands the versatility of the bike for lower-extremity therapeutic exercise and progressive conditioning while giving clinicians greater flexibility when developing individualized rehabilitation programs.

The dual electromagnetic resistance system provides smooth, controlled resistance across a broad range of exercise intensities.

Constant Power & Isokinetic Resistance Modes

The SPIRIT 7.0U offers advanced resistance capabilities designed for professional rehabilitation environments.

Constant Power Mode provides controlled workload-based exercise, while Isokinetic Speed-Based Resistance operates from 25 to 100 RPM.

These resistance options allow clinicians to select an exercise mode appropriate for the user's abilities, therapeutic goals, and stage of rehabilitation.

Wide 5–1700 Watt Workload Range

With a workload range from 5 to 1700 watts, the SPIRIT 7.0U accommodates a broad spectrum of exercise intensities.

The low starting workload supports controlled therapeutic exercise, while the extensive upper workload range provides room for progressive strengthening, cardiovascular conditioning, and higher-level rehabilitation as the user's capabilities improve.

Adjustable Seating for Individualized Positioning

The SPIRIT 7.0U features a fully adjustable high-density foam seat designed to provide comfort and appropriate positioning during therapeutic exercise.

Numbered seat adjustments make it easier to identify and reproduce individual positioning between sessions—particularly useful in clinical environments where the bike may be used by multiple patients throughout the day.

The bike is designed to accommodate users ranging from approximately 4'10" to 6'6" and supports users weighing up to 440 lbs.

Rehabilitation Programs & Progress Tracking

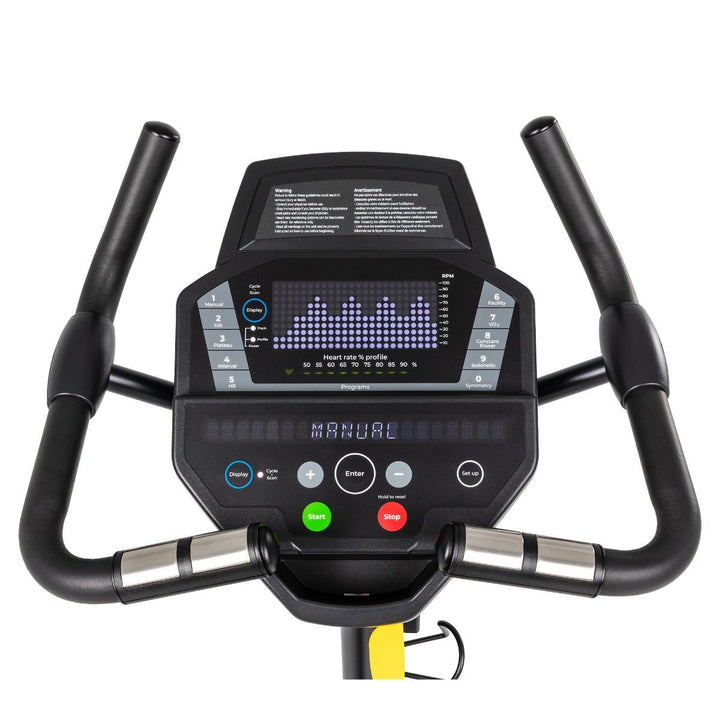

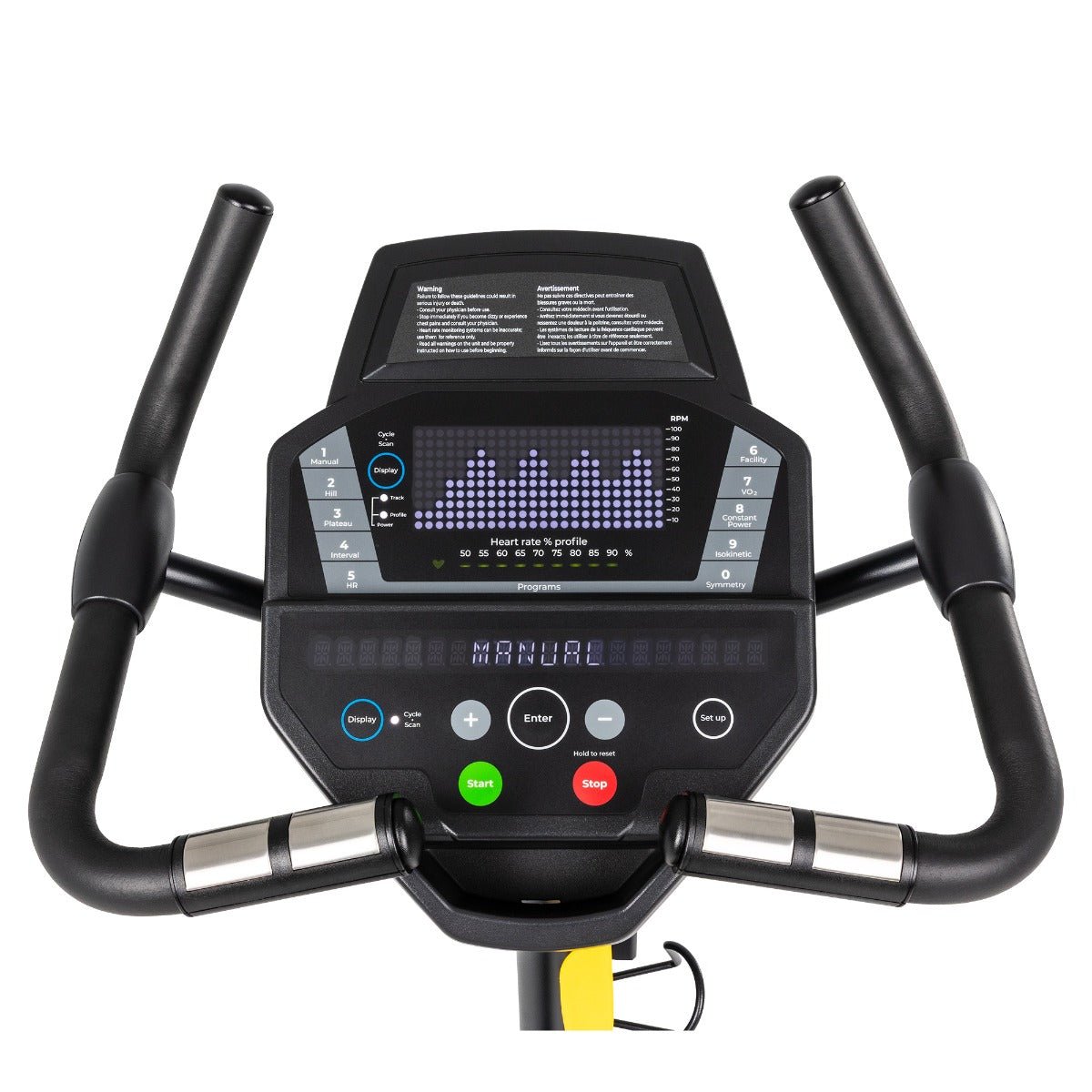

The intuitive white LED console with a 20-character message window provides clear exercise information and straightforward operation for clinicians and users.

Available programs include:

• Manual

• Hill

• Plateau

• Interval

• VO2

• Heart Rate

• Custom

• Constant Power

• Isokinetic Speed-Based Resistance

A built-in 5 kHz wireless heart rate receiver provides compatibility with supported wireless heart rate monitoring devices.

USB Type-B ports support data transfer, while CSAFE connectivity provides additional integration capabilities for professional rehabilitation and fitness environments.

SPIRIT Fitness 7.0U Specifications

Resistance System: Dual Electromagnetic
Resistance Levels: 50 Bidirectional Levels
Resistance Modes: Constant Power and Isokinetic
Isokinetic Speed Range: 25–100 RPM
Workload Range: 5–1700 Watts
Crank Arms: Adjustable Length
Drive Train: Heavy-Duty 8-Groove Poly-V Belt with Spring-Loaded Idlers
Seat: High-Density Foam
Seat Adjustment: Fully Adjustable with Numbered Positioning
Recommended User Height: 4'10"–6'6"
Maximum User Weight: 440 lbs. / 200 kg
Display: White LED
Display Features: 20-Character Message Window
Programs: Manual, Hill, Plateau, Interval, VO2, HR, Custom, Constant Power, Isokinetic
Heart Rate Receiver: 5 kHz
Data Transfer: USB Type-B Ports
CSAFE: Yes
Power Requirements: 120V / 15 Amp Cord/Outlet
Dimensions: 43.3" L x 22.4" W x 54.3" H
Product Weight: 117.5 lbs.
Compliance: CAN/CSA-C22.2 NO. 60601-1:14, ANSI/AAMI ES60601-1:2005+A2(R2012)+A1, IEC 60601-1-2:2007, IEC 60601-1:2005
Warranty: 5 Years Parts / 1 Year Labor

Ideal for Professional Rehabilitation Environments

The SPIRIT Fitness 7.0U Rehabilitation Upright Bike is well suited for:

• Physical therapy clinics

• Rehabilitation centers

• Hospital rehabilitation departments

• Sports medicine facilities

• Athletic training facilities

• Orthopedic rehabilitation programs

• Lower-extremity rehabilitation programs

• Senior rehabilitation programs

• Occupational health and wellness programs

• Other professional and commercial therapy environments

With its combination of adjustable crank arms, 50 levels of bidirectional resistance, constant power and isokinetic resistance modes, adjustable seating, and extensive 5–1700 watt workload range, the SPIRIT 7.0U provides clinicians with a versatile upright cycling platform for therapeutic exercise, range-of-motion training, progressive strengthening, and cardiovascular conditioning.
