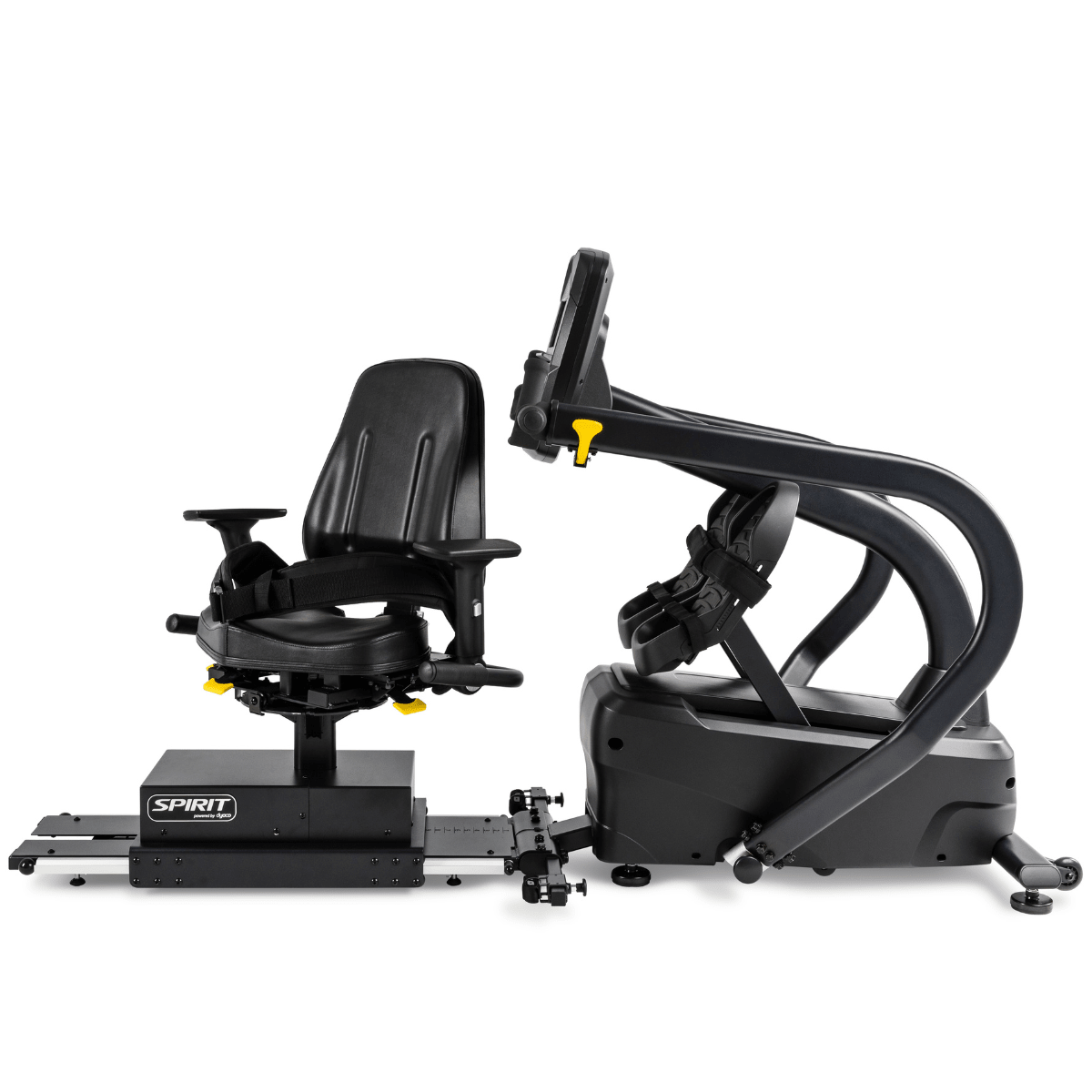

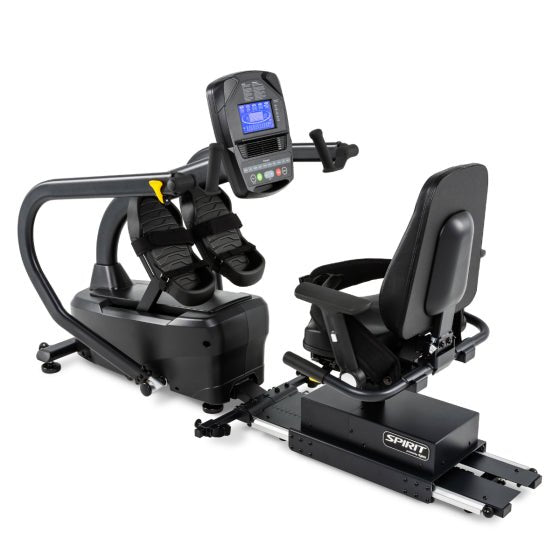

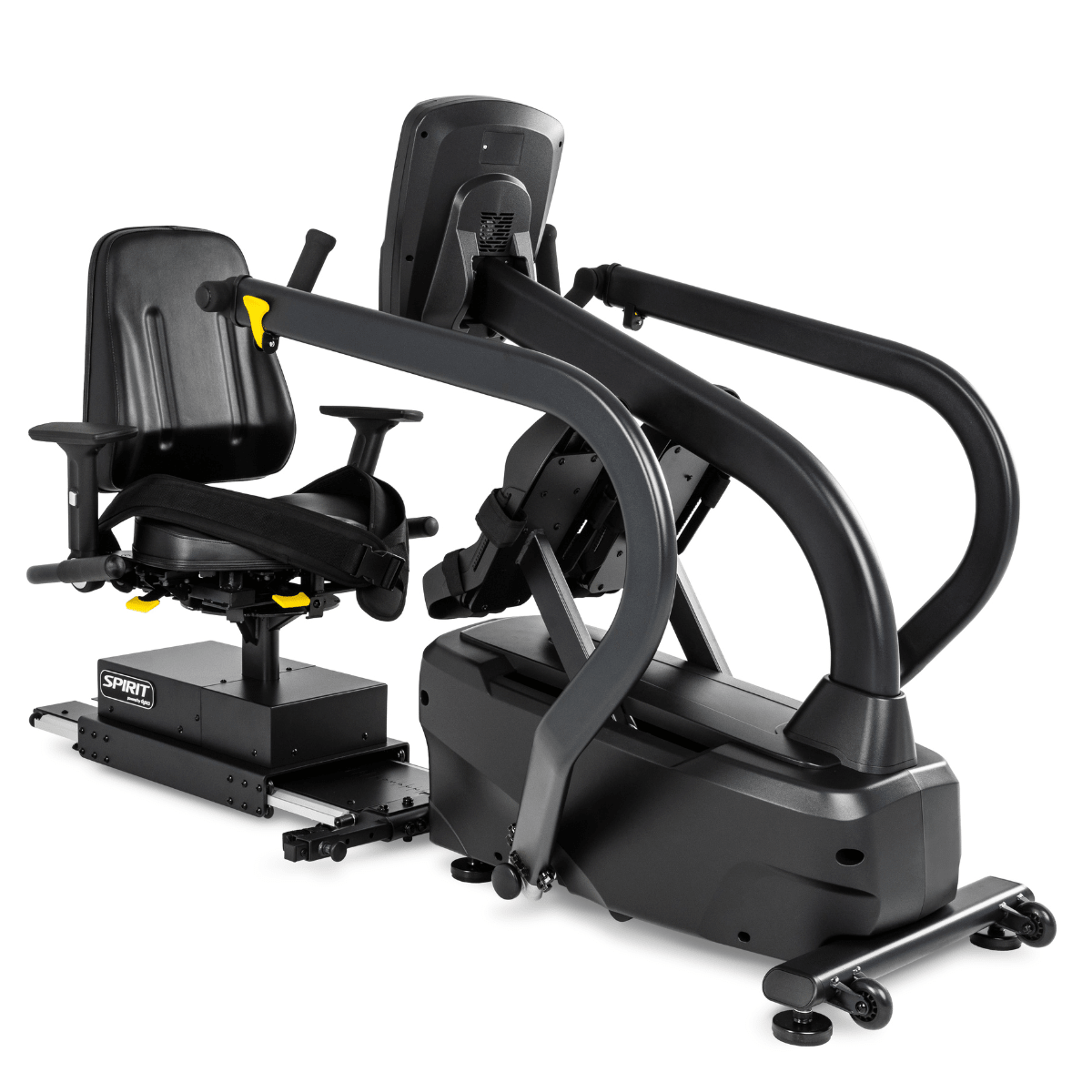

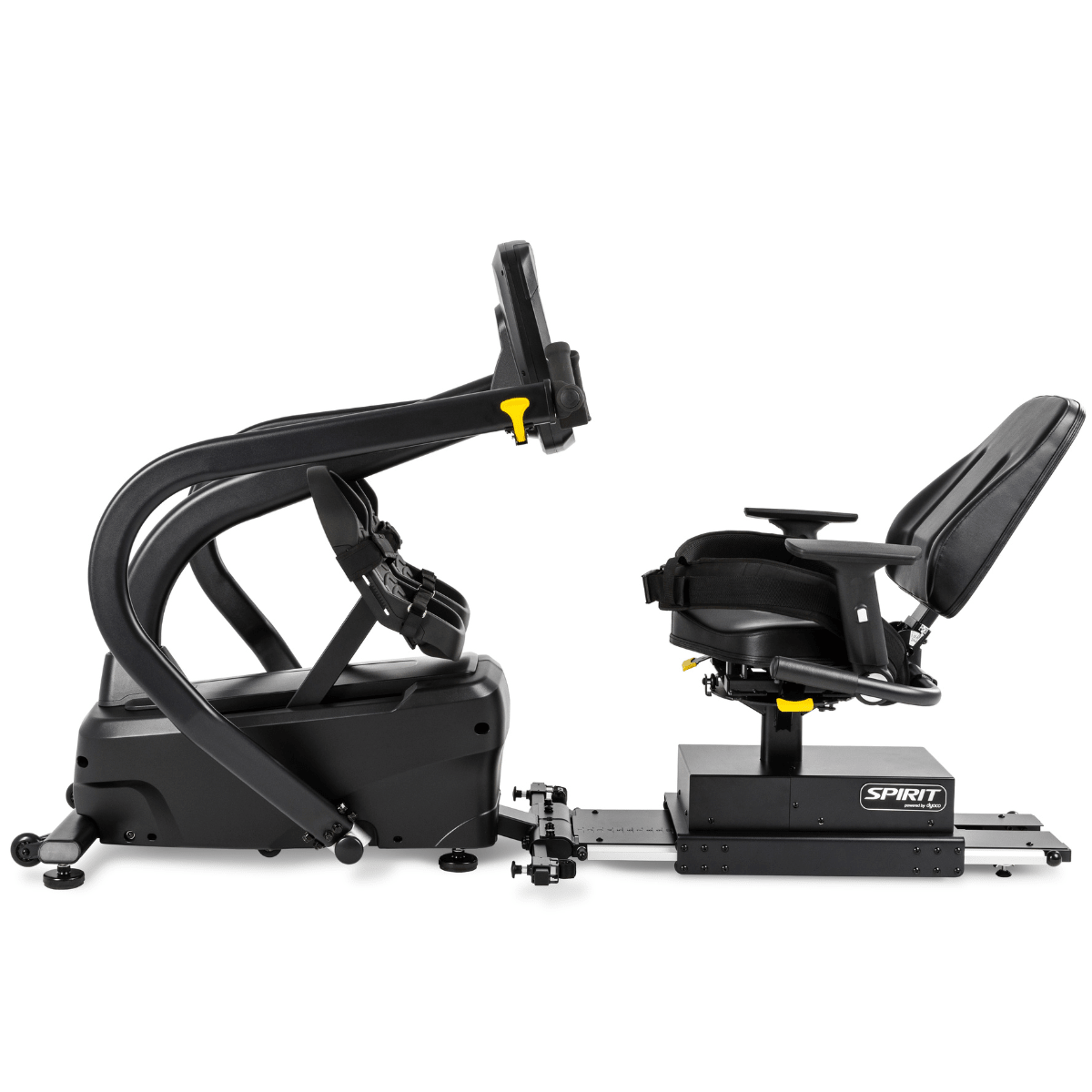

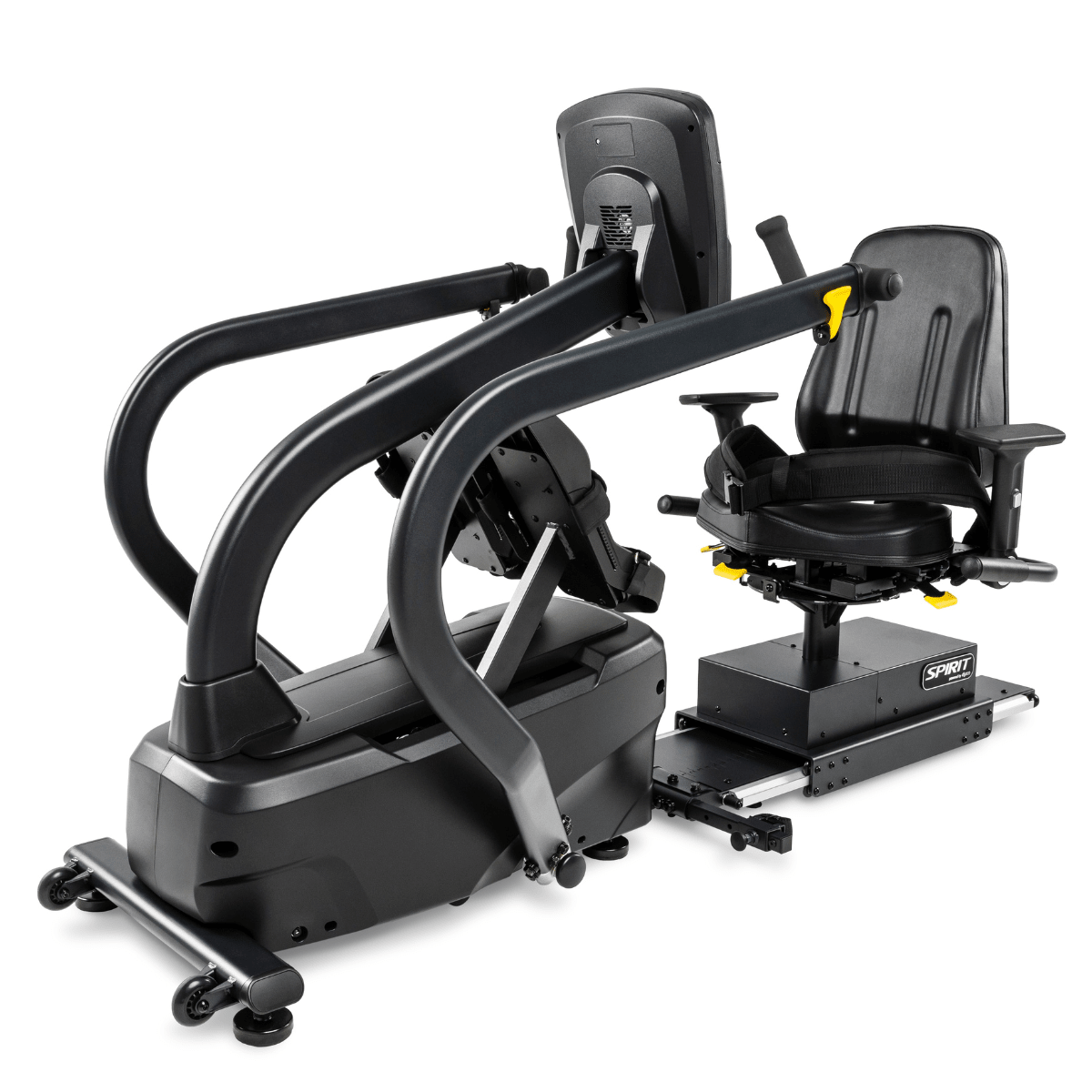

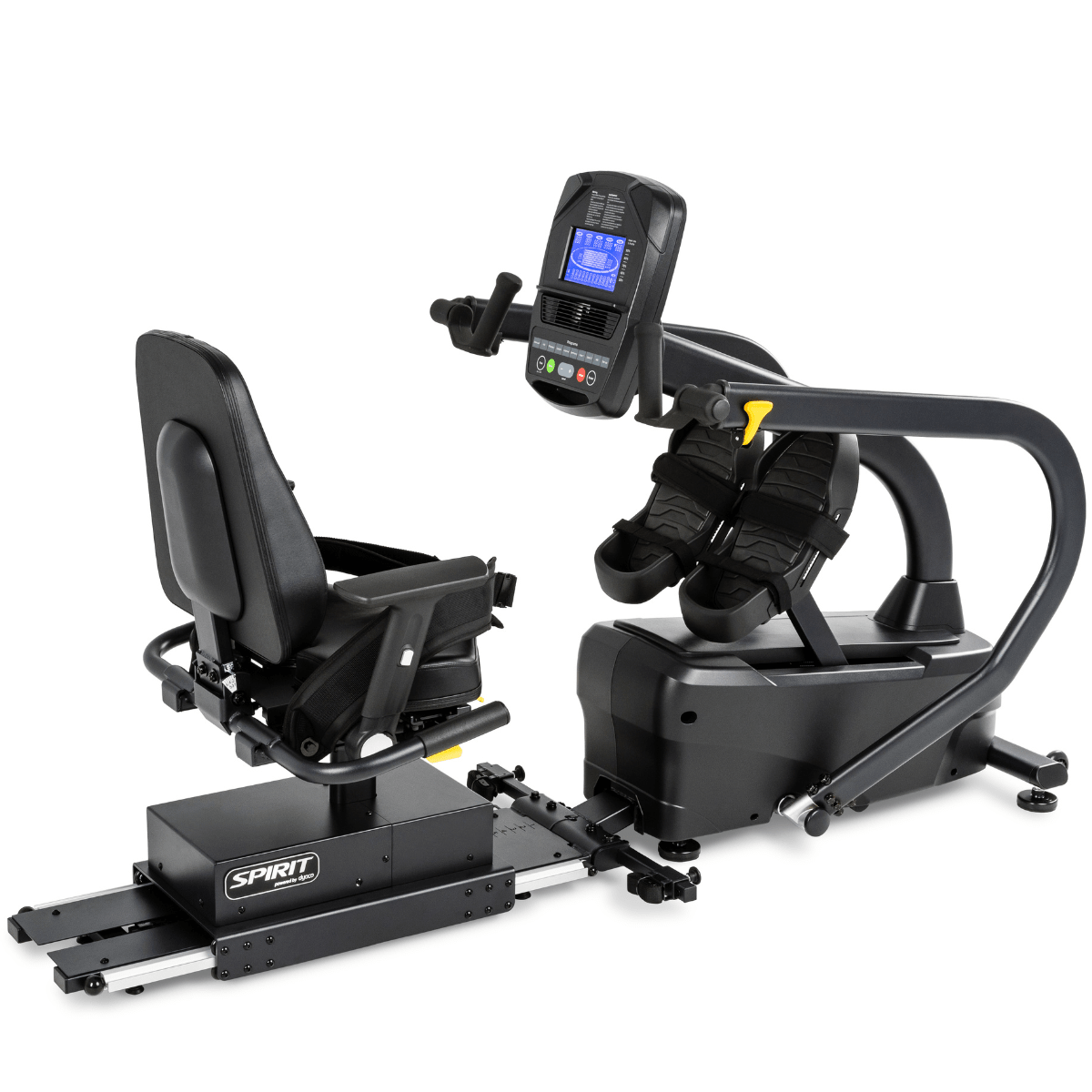

SPIRIT Fitness 7.5S Wheelchair Accessible Rehabilitation Recumbent Stepper

The SPIRIT Fitness 7.5S Rehabilitation Recumbent Stepper is engineered for physical therapy, rehabilitation, and professional healthcare environments where wheelchair accessibility, patient transfers, controlled movement, and progressive therapeutic exercise are essential.

Designed as an accessible semi-recumbent rehabilitation stepper, the SPIRIT 7.5S provides direct wheelchair access or a 360-degree swiveling seat, allowing clinicians to accommodate users with a wide range of mobility levels. The system is designed to align with ADA accessibility requirements and provide greater inclusivity within medical and rehabilitation settings.

Bilateral upper- and lower-body movement, 20 levels of resistance, a 10–210 steps-per-minute speed range, and an adjustable 1"–12.5" step range allow exercise to be tailored to individual mobility, range-of-motion, strength, and conditioning goals. A dedicated Symmetry program further expands its capabilities for rehabilitation and bilateral exercise.

Designed for Accessible Rehabilitation & Physical Therapy

The SPIRIT Fitness 7.5S combines the support of semi-recumbent exercise with accessibility features designed for users with limited mobility.

Its unique design provides direct wheelchair access, allowing the seat assembly to be moved away from the exercise unit so an appropriate wheelchair can be positioned directly at the stepping mechanism. When the integrated seat is preferred, the 360-degree swivel design helps facilitate easier entry, positioning, and exit.

This flexibility makes the SPIRIT 7.5S particularly valuable in rehabilitation environments serving patients across a broad spectrum of physical abilities.

Key Features

• Direct wheelchair access

• 360-degree swiveling seat for easier entry and exit

• Semi-recumbent positioning for added support and comfort

• Bilateral upper- and lower-body movement

• 20 levels of resistance

• 10–210 steps-per-minute speed range

• 1"–12.5" adjustable step range

• Dedicated Symmetry program

• Adjustable seat angle for patient comfort

• Eddy current braking system

• Small flywheel for low starting inertia

• 5–1000 watt workload range

• Heavy-duty 8-groove Poly-V belt drive system

• High-end linear bearings and guides

• Recommended for users from 4'10" to 6'6"

• 440 lb. maximum user weight

• Blue backlit LCD

• Multiple preset and customizable exercise programs

• 5 kHz wireless heart rate receiver

• USB Type-B port for data transfer

• CSAFE connectivity

• Built-in cooling fans

• Optional leg stabilization kit available separately

Direct Wheelchair Access

One of the defining features of the SPIRIT 7.5S is its direct wheelchair access, providing an exercise option for users who may not be able to transfer safely or comfortably onto conventional rehabilitation equipment.

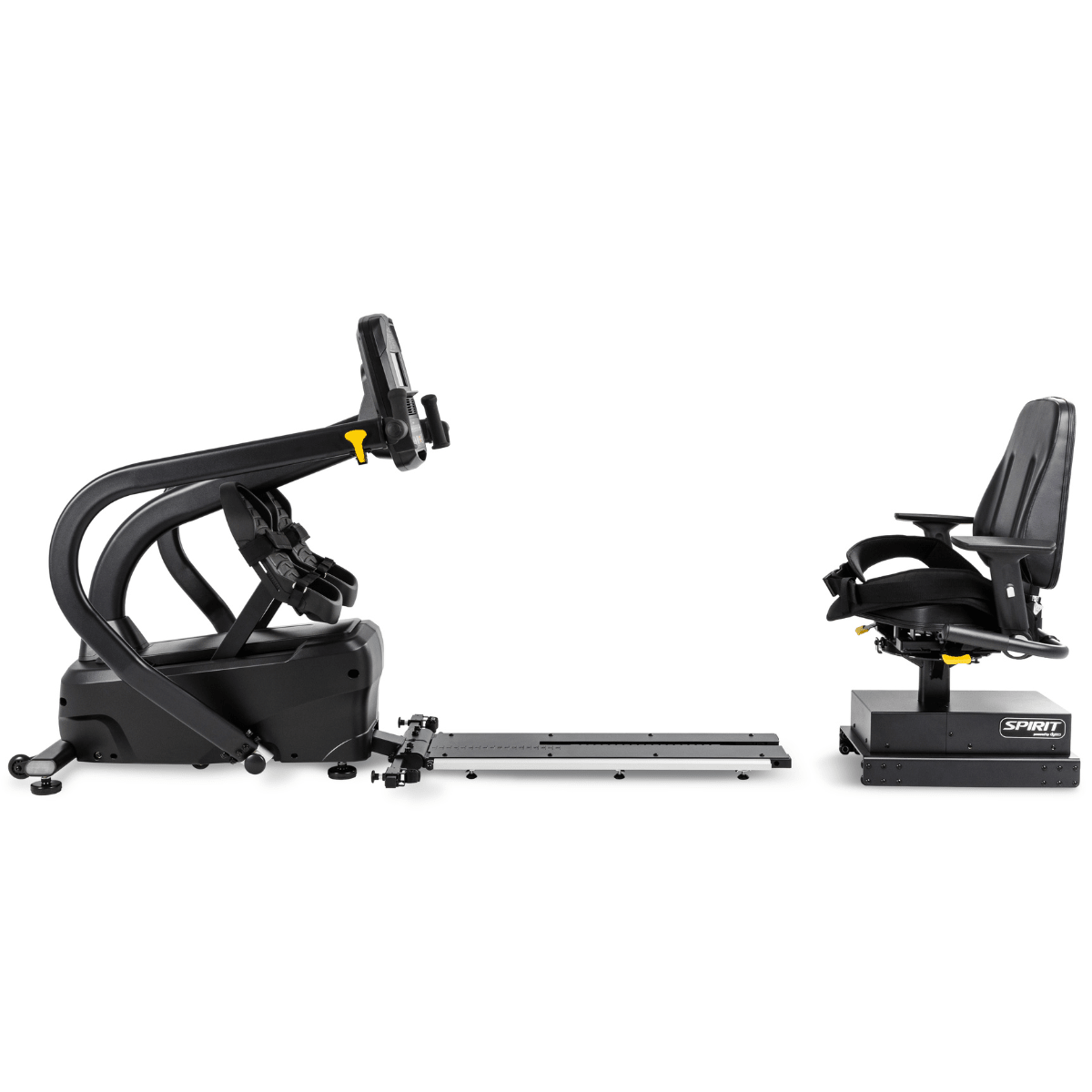

The seat assembly can be positioned away from the exercise unit, creating space for direct wheelchair positioning at the stepping mechanism.

This capability can be particularly valuable in physical therapy, neurological rehabilitation, long-term care, and other clinical environments serving individuals with significant mobility limitations.

360-Degree Swivel Seat for Easier Transfers

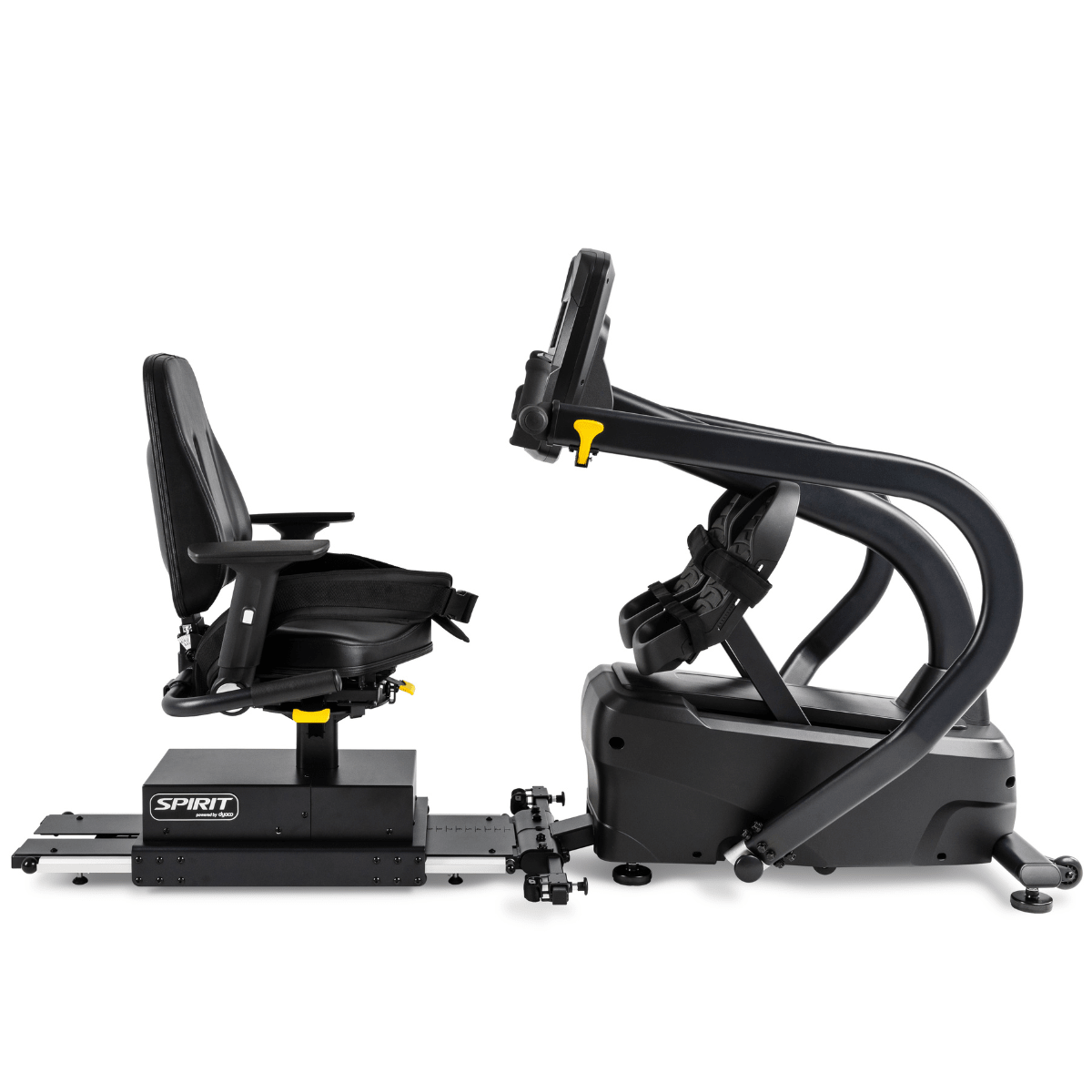

When the integrated seat is used, its 360-degree swivel capability helps facilitate easier entry and exit.

The ability to rotate the seat can reduce the amount of maneuvering required to assume the exercise position and provides clinicians with greater flexibility when assisting users during transfers.

Combined with direct wheelchair access, the swivel-seat system allows the SPIRIT 7.5S to accommodate a diverse range of mobility and transfer requirements.

Bilateral Upper & Lower Body Movement

The SPIRIT 7.5S provides coordinated bilateral upper- and lower-body movement, allowing users to engage multiple muscle groups during therapeutic exercise.

The full-body stepping motion provides clinicians with a versatile platform for mobility-focused exercise, progressive strengthening, cardiovascular conditioning, and rehabilitation programs.

The semi-recumbent configuration provides additional support while offering a low-impact exercise option for users with varying physical abilities.

Symmetry Training

The SPIRIT 7.5S includes a dedicated Symmetry program designed to support bilateral exercise.

Combined with the stepper's bilateral movement pattern, the Symmetry program provides an additional tool for rehabilitation professionals when balanced movement is an important component of an individualized exercise program.

Adjustable 1"–12.5" Step Range

The SPIRIT 7.5S provides an adjustable 1" to 12.5" step range, allowing the stepping motion to accommodate different ranges of motion and rehabilitation needs.

A shorter step range can accommodate users requiring a more limited movement pattern, while the range can be progressively adjusted as mobility and exercise tolerance improve.

This adjustability gives clinicians greater flexibility when tailoring therapeutic exercise to individual abilities and rehabilitation goals.

20 Levels of Resistance

The SPIRIT 7.5S provides 20 levels of resistance, allowing exercise intensity to be progressively adjusted based on the user's abilities and therapeutic goals.

An eddy current braking system with a small flywheel provides low starting inertia to help users initiate movement with less initial resistance.

With a workload range from 5 to 1000 watts, the 7.5S accommodates controlled therapeutic exercise while providing room for progressive strengthening and cardiovascular conditioning.

Adjustable Seating for Patient Comfort

The SPIRIT 7.5S incorporates an adjustable seat angle designed to help reduce back strain and improve comfort during exercise.

The integrated seat can be used when appropriate or moved to accommodate direct wheelchair access, giving clinicians greater flexibility when working with users of varying abilities.

The stepper is designed for recommended user heights from approximately 4'10" to 6'6" and supports users weighing up to 440 lbs.

Rehabilitation Programs & Progress Tracking

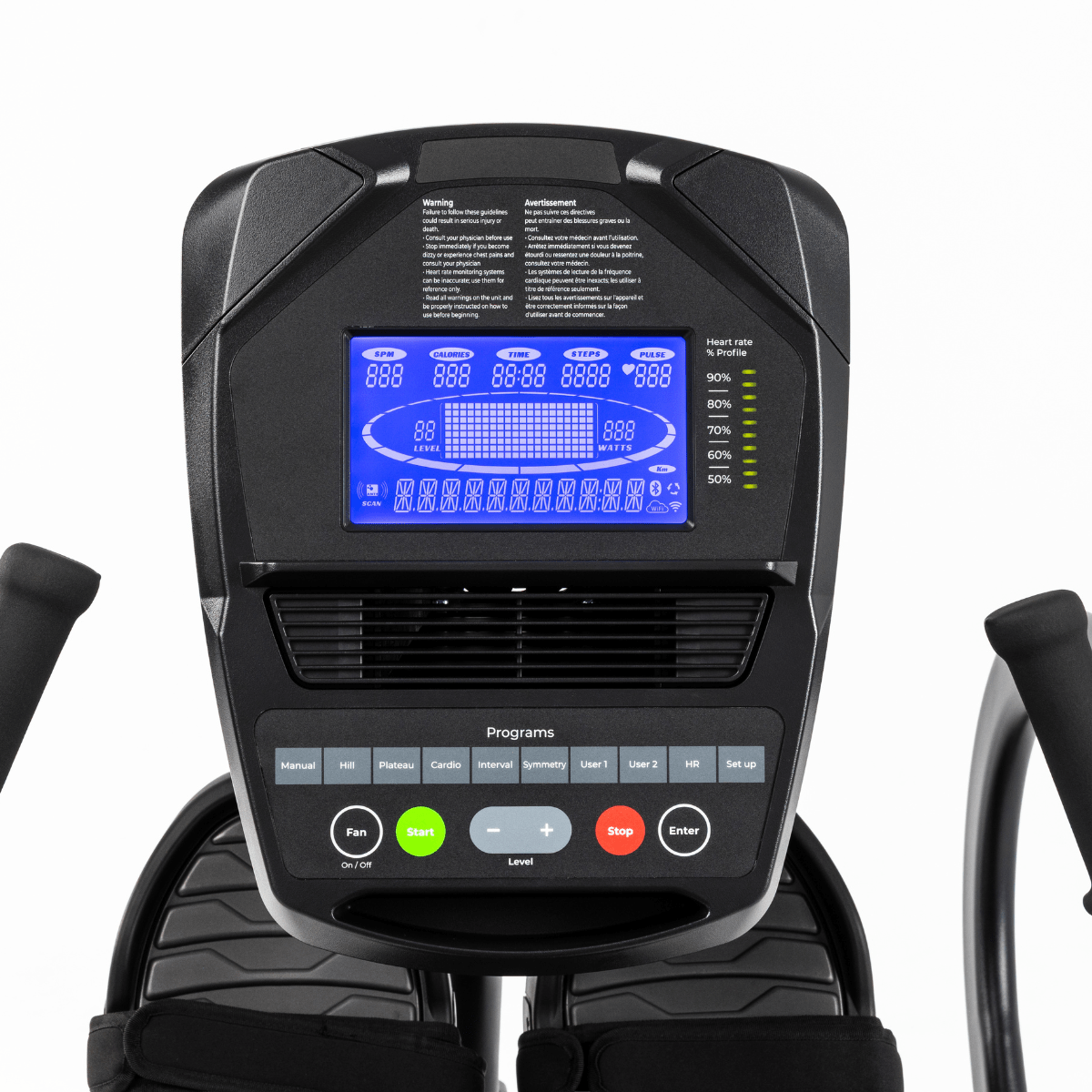

The full-featured blue backlit LCD console provides clear exercise feedback and straightforward operation for clinicians and users.

Available programs include:

• Manual

• Hill

• Plateau

• Interval

• Symmetry

• Heart Rate

• Custom 1

• Custom 2

A built-in 5 kHz wireless heart rate receiver provides compatibility with supported wireless heart rate monitoring devices.

A USB Type-B port supports data transfer, while CSAFE connectivity provides additional integration capabilities for professional rehabilitation environments.

SPIRIT Fitness 7.5S Specifications

Equipment Type: Semi-Recumbent Rehabilitation Stepper
Accessibility: Direct Wheelchair Access or 360-Degree Swiveling Seat
Resistance Levels: 20
Speed Range: 10–210 Steps Per Minute
Step Range: 1"–12.5" Adjustable
Workload Range: 5–1000 Watts
Braking System: Eddy Current Brake with Small Flywheel for Low Starting Inertia
Drive Train: Heavy-Duty 8-Groove Poly-V Belt with High-End Linear Bearings and Guides
Seat: 360-Degree Swiveling / Removable for Wheelchair Access
Seat Angle: Adjustable
Recommended User Height: 4'10"–6'6"
Maximum User Weight: 440 lbs. / 200 kg
Display: Blue Backlit LCD
Programs: Manual, Hill, Plateau, Interval, Symmetry, HR, Custom 1, Custom 2
Heart Rate Receiver: 5 kHz
Data Transfer: USB Type-B Port
CSAFE: Yes
Power Requirements: 120V / 15 Amp Cord/Outlet
Dimensions: 77.6" L x 33.5" W x 46.5" H
Product Weight: 305.8 lbs.
Compliance: CAN/CSA-C22.2 NO. 60601-1:14, ANSI/AAMI ES60601-1:2005+A2(R2012)+A1, IEC 60601-1-2:2007, IEC 60601-1:2005
Warranty: 5 Years Parts / 1 Year Labor
Optional Accessory: MA902 Leg Stabilization Kit (Pair) – Not Included

Ideal for Professional Rehabilitation Environments

The SPIRIT Fitness 7.5S Rehabilitation Recumbent Stepper is well suited for:

• Physical therapy clinics

• Rehabilitation centers

• Hospital rehabilitation departments

• Neurological rehabilitation programs

• Wheelchair and mobility rehabilitation programs

• Adaptive exercise programs

• Orthopedic rehabilitation programs

• Cardiac rehabilitation programs

• Senior rehabilitation programs

• Skilled nursing and long-term care facilities

• Occupational health and wellness programs

• Other professional and commercial therapy environments

With its combination of direct wheelchair access, 360-degree swivel-seat accessibility, bilateral upper- and lower-body movement, adjustable step range, Symmetry training, and low starting inertia, the SPIRIT 7.5S provides clinicians with an accessible and versatile rehabilitation platform for therapeutic exercise, mobility training, progressive strengthening, and cardiovascular conditioning.
