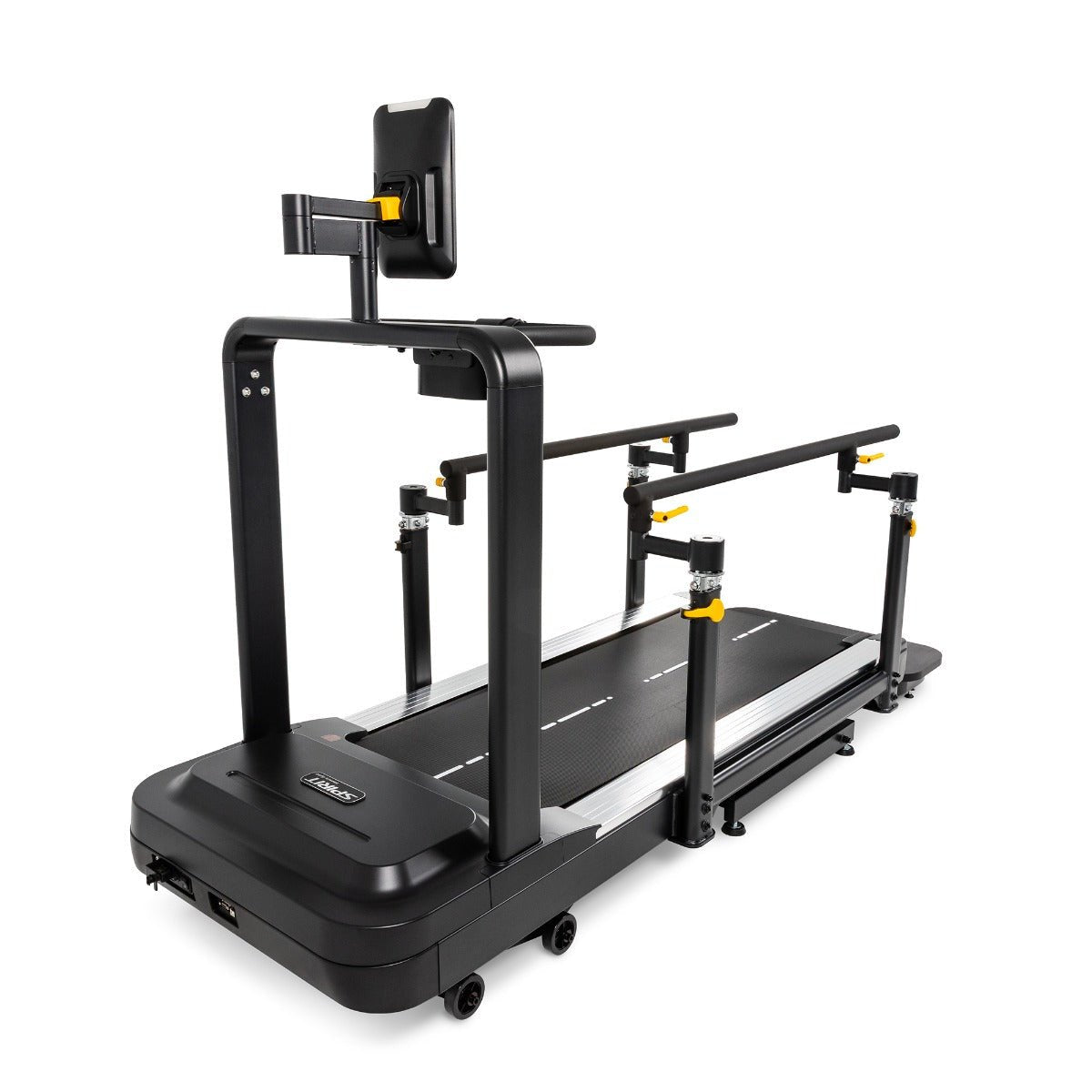

SPIRIT Fitness 8.0T Neurological Rehabilitation & Cardiac Stress Test Treadmill

The SPIRIT Fitness 8.0T Rehabilitation Treadmill is an advanced neurological rehabilitation and cardiac stress testing system engineered for physical therapy, rehabilitation, hospital, and professional healthcare environments.

Designed to provide clinicians with exceptional control and versatility, the SPIRIT 8.0T combines an expansive -5 to 13.6 MPH bidirectional speed range, electronic -12% decline to 25% incline, gas-assisted adjustable full-length handrails, Safe Step technology, and a deck-lift mechanism with a sophisticated tablet-based console.

The treadmill supports forward and backward walking, step-length symmetry measurement, neurological rehabilitation, gait training, and multiple cardiac stress testing protocols—all within a single clinical rehabilitation platform.

Advanced Rehabilitation & Cardiac Stress Testing

The SPIRIT Fitness 8.0T goes beyond the capabilities of a conventional rehabilitation treadmill by combining advanced gait and mobility features with an integrated cardiac stress testing interface.

A 10.1" tablet console provides access to exercise programs, rehabilitation functionality, data transfer, and cardiac stress testing protocols. Multiple connectivity options support integration within professional healthcare environments.

With adjustable parallel-style handrails, an extensive bidirectional speed range, true incline and decline operation, and advanced safety features, the 8.0T provides clinicians with a versatile platform for neurological rehabilitation, gait training, cardiac stress testing, and therapeutic exercise.

Key Features

• Designed for neurological rehabilitation and cardiac stress testing

• -5 to 13.6 MPH bidirectional speed range

• Speed adjustable in precise 0.1 MPH increments

• -12% decline to 25% incline

• Incline/decline adjustable in 0.5% increments

• Two-motor design provides true incline and decline ramping

• Gas-assisted adjustable full-length handrails

• Adjustable handrail height and width

• Safe Step program detects user pace

• Step-length symmetry measurement

• Deck-lift mechanism

• 22" x 60" self-lubricating deck

• Deck safety markings

• Powerful 3.0 HP AC motor

• Forward and reverse walking capabilities

• 10.1" tablet console

• Cardiac stress testing interface

• USB connectivity for data transfer

• Multiple cardiac stress test protocols

• Bluetooth and ANT+ heart rate connectivity

• Safety lanyard

• Optional remote emergency stop capability

• 440 lb. maximum user weight

• Current leakage protection with EMC filter

Bidirectional Walking for Neurological Rehabilitation & Gait Training

The SPIRIT 8.0T provides an extensive -5 to 13.6 MPH bidirectional speed range, allowing clinicians to incorporate both forward and backward walking into individualized rehabilitation programs.

Speed can be adjusted in precise 0.1 MPH increments, providing fine control over exercise progression.

The ability to facilitate backward walking, combined with step-length symmetry measurement and adjustable full-length handrails, makes the 8.0T particularly well suited for advanced gait training and neurological rehabilitation applications.

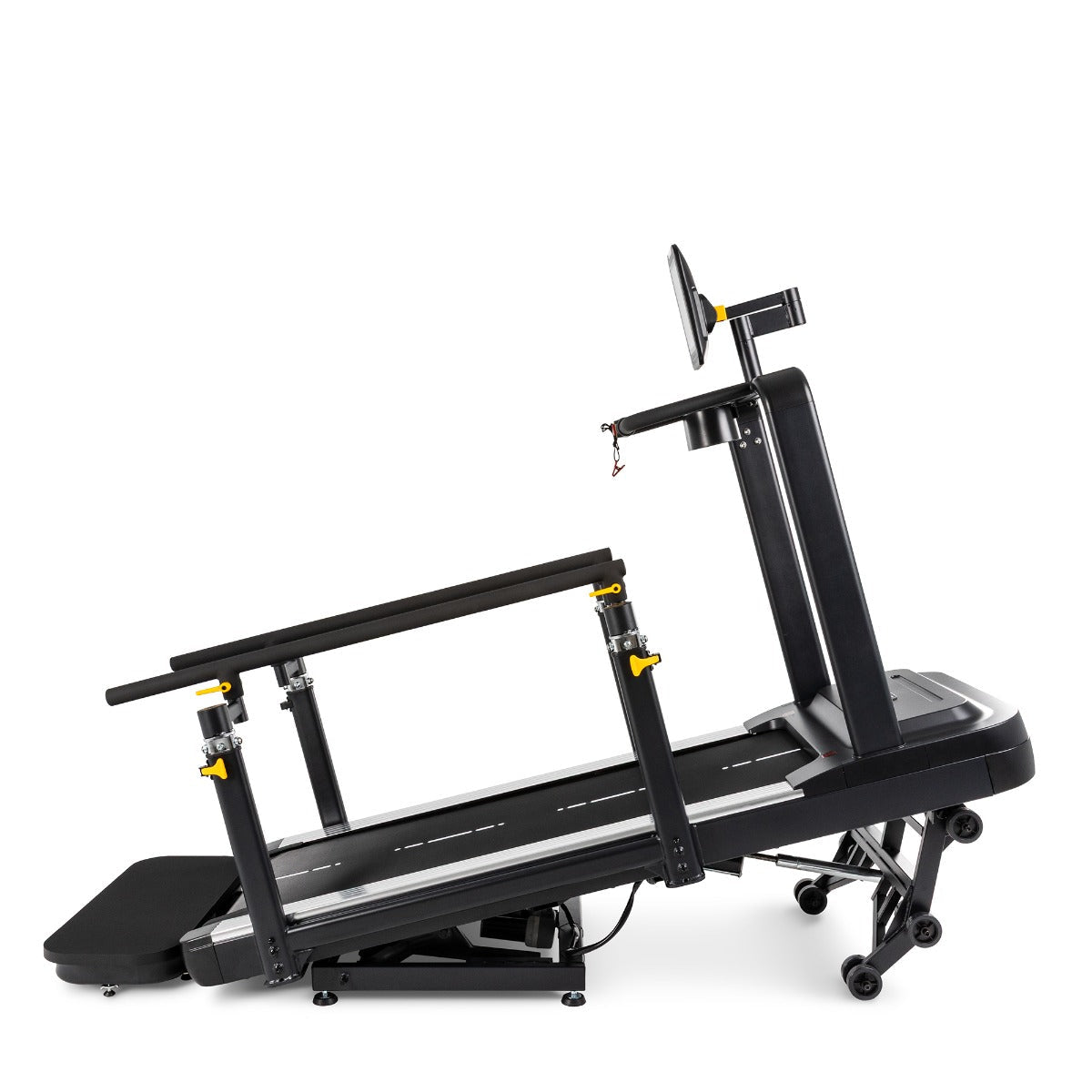

-12% Decline to 25% Incline

The SPIRIT 8.0T incorporates a two-motor system that provides true electronic incline and decline ramping from -12% decline to 25% incline.

Grade can be adjusted in precise 0.5% increments, allowing clinicians to progressively modify walking conditions and exercise intensity based on individual rehabilitation or testing requirements.

The exceptionally broad grade range expands the treadmill's versatility for therapeutic exercise, gait training, progressive conditioning, and clinical testing.

Gas-Assisted Adjustable Full-Length Handrails

Full-length, parallel-style handrails provide continuous support alongside the walking surface and can be adjusted to accommodate a wide range of users.

Gas-assisted adjustment helps clinicians modify the handrail position based on individual patient requirements.

The handrails adjust from approximately 24.5" to 34.5" in height and 19.5" to 31" in width, providing substantial flexibility when positioning users for rehabilitation and gait training.

Safe Step Technology

The SPIRIT 8.0T incorporates the Safe Step program, which detects the user's pace to support safer treadmill operation during rehabilitation.

This technology is complemented by zero-speed braking, a safety lanyard, and optional remote emergency stop capabilities.

Together, these features provide additional layers of safety for clinicians working with individuals who may have mobility, balance, neurological, or cardiovascular limitations.

Step-Length Symmetry Measurement

The SPIRIT 8.0T provides the ability to measure step-length symmetry, giving rehabilitation professionals another tool for evaluating walking patterns during treadmill-based exercise.

Combined with bidirectional walking, adjustable handrails, and precise speed control, symmetry measurement expands the treadmill's usefulness for advanced gait and neurological rehabilitation programs.

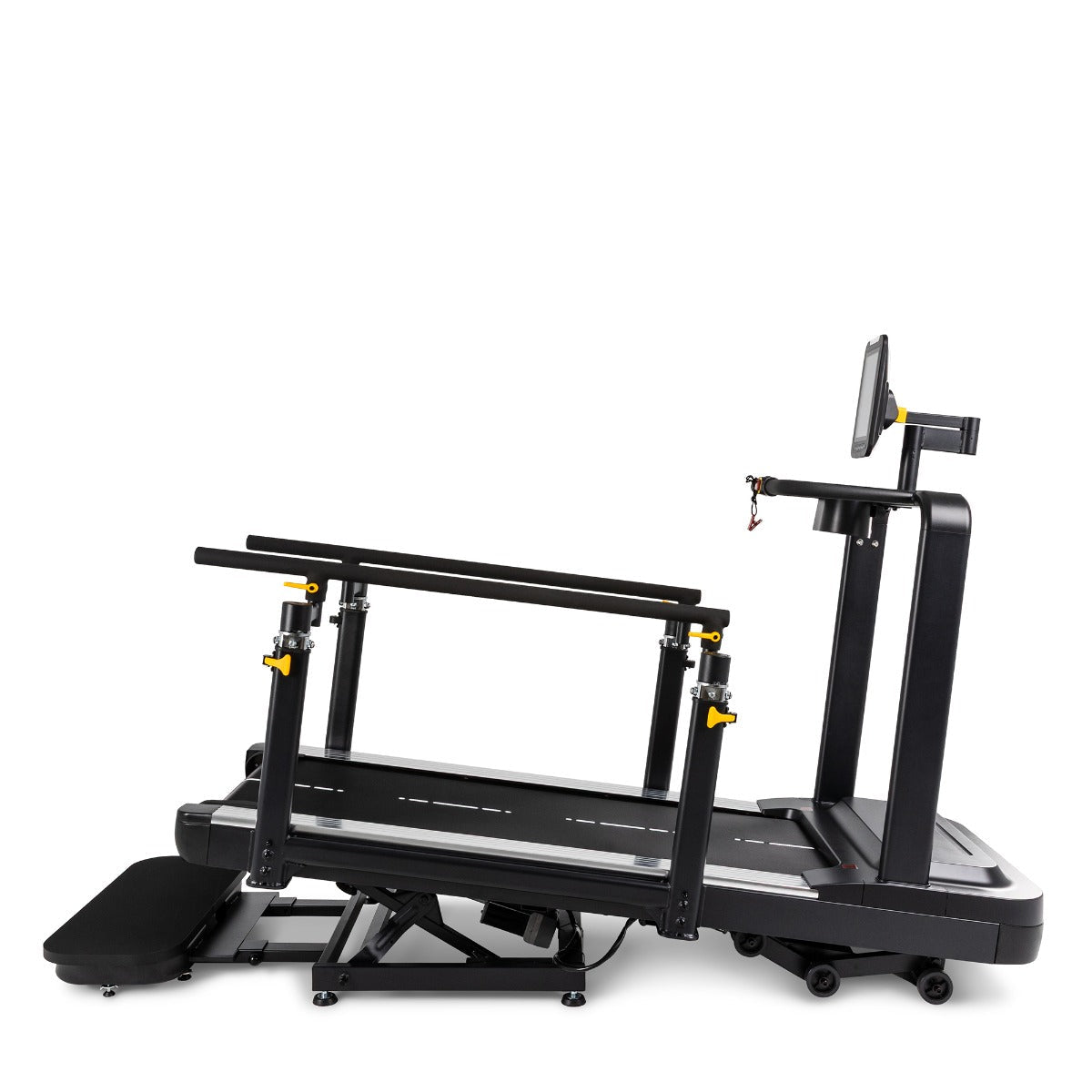

Deck-Lift Mechanism & Patient Accessibility

The 8.0T incorporates a deck-lift mechanism and rear step to support easier treadmill access.

The rear step measures approximately 4.7" from the ground, while the walking deck is approximately 9.6" from the ground.

These accessibility features work alongside the adjustable full-length handrails to provide additional support when users enter and exit the treadmill.

Integrated Cardiac Stress Testing

In addition to its rehabilitation capabilities, the SPIRIT 8.0T incorporates a dedicated cardiac stress testing interface and multiple established testing protocols.

Available cardiac and fitness testing programs include:

• Naughton

• Modified Naughton

• Bruce Protocol

• Balke-Ware

• Astrand

• Conconi Test

• Gerkin

• WFI

• Army

• Navy

• Air Force

• Marines

• Physical Efficiency Battery

• Coast Guard

• CTT Performance

• CTT Prediction

This extensive protocol library allows the SPIRIT 8.0T to serve both rehabilitation and clinical exercise testing applications.

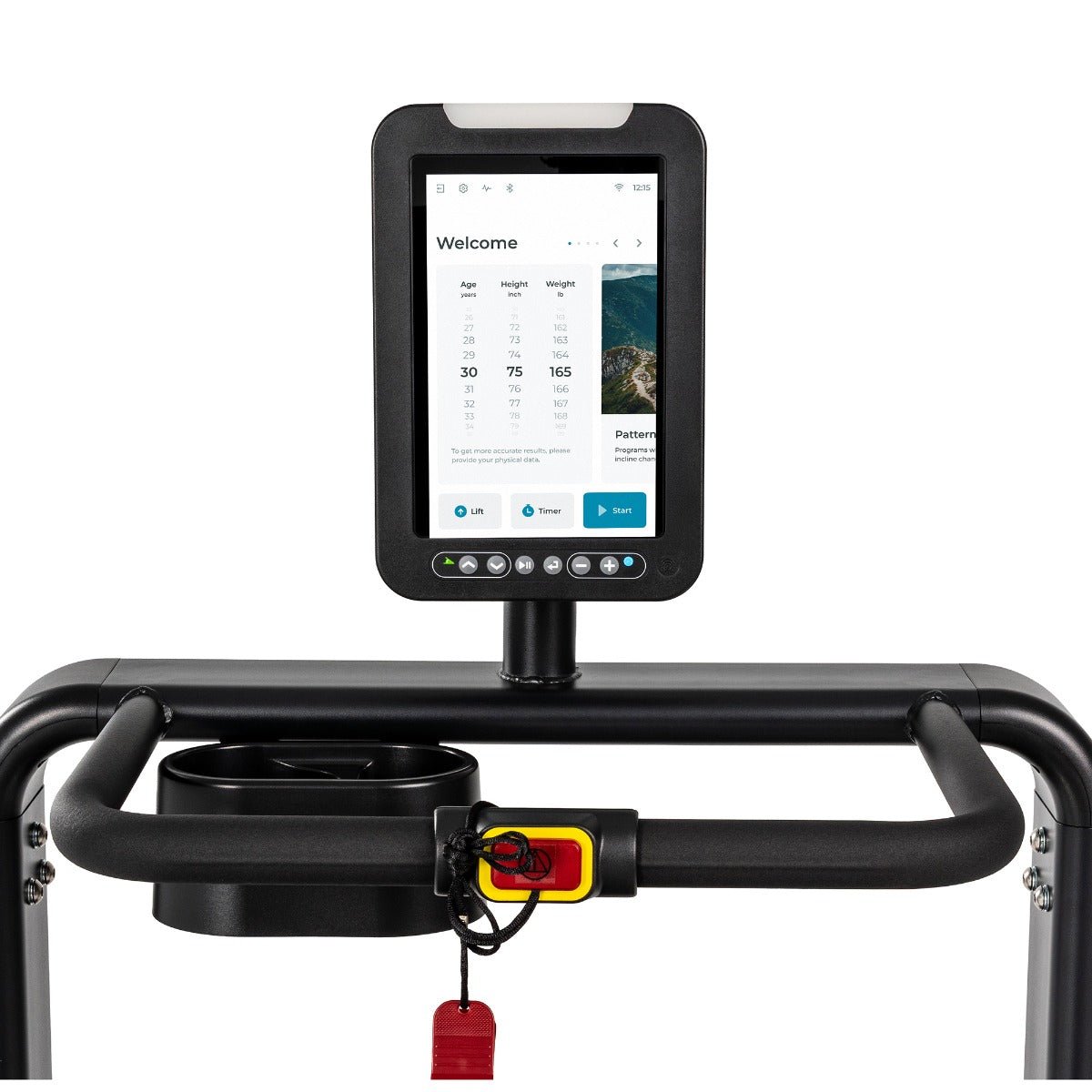

10.1" Tablet Console & Connectivity

The SPIRIT 8.0T features an integrated 10.1" tablet console designed to provide clinicians with intuitive access to treadmill functions, testing protocols, and exercise data.

The console offers 360-degree horizontal adjustment for improved viewing and positioning.

USB connectivity supports data transfer software and cardiac stress testing applications, while Bluetooth and ANT+ connectivity provide additional options for compatible heart rate monitoring.

Rehabilitation & Exercise Programs

In addition to cardiac testing protocols, the SPIRIT 8.0T provides a comprehensive selection of exercise and rehabilitation programs.

Available programs include:

• Manual

• Timer

• Hill

• Plateau

• HIIT

• Facility

• Target Heart Rate

• Target METs

• Target Calories

• Target Distance

• Target Steps

• Target Vertical

These options provide clinicians with substantial flexibility when developing individualized rehabilitation, exercise testing, and conditioning programs.

SPIRIT Fitness 8.0T Specifications

Equipment Type: Neurological Rehabilitation & Cardiac Stress Test Treadmill
Speed Range: -5 to 13.6 MPH Bidirectional
Speed Increments: 0.1 MPH
Incline/Decline: -12% to 25%
Incline/Decline Increments: 0.5%
Motor: 3.0 HP AC
Walking Surface: 22" x 60" Self-Lubricating Deck
Handrails: Gas-Assisted, Full-Length and Adjustable
Handrail Height Adjustment: 24.5"–34.5"
Handrail Width Adjustment: 19.5"–31"
Console: 10.1" Tablet
Console Adjustment: 360-Degree Horizontal
Heart Rate Connectivity: Bluetooth and ANT+
Safety: Safe Step, Safety Lanyard, Optional Remote Emergency Stop
Maximum User Weight: 440 lbs. / 200 kg
Step-Up Height: 4.7" Ground to Step / 9.6" Ground to Deck
Power Requirements: 120V, 60Hz, Dedicated 20-Amp Circuit
Plug/Receptacle: NEMA 5-20P
Dimensions: 98.3" L x 37.4" W x 63.6" H
Dimensions Without Rear Step: 84" L x 37.4" W x 63.6" H
Product Weight: 556.6 lbs.
Current Leakage Protection: Yes, with EMC Filter
Compliance: IEC 60601-1, IEC 60601-1-2, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 NO. 60601-1
Warranty: 5 Years Parts / 1 Year Labor

Ideal for Professional Rehabilitation & Clinical Environments

The SPIRIT Fitness 8.0T Rehabilitation Treadmill is well suited for:

• Physical therapy clinics

• Neurological rehabilitation programs

• Hospital rehabilitation departments

• Cardiac rehabilitation programs

• Cardiac stress testing departments

• Gait and mobility training programs

• Orthopedic rehabilitation programs

• Sports medicine facilities

• Occupational health programs

• Clinical exercise testing

• Professional healthcare and rehabilitation facilities

With its combination of bidirectional walking, step-length symmetry measurement, -12% to 25% incline/decline capability, gas-assisted adjustable handrails, Safe Step technology, integrated cardiac stress testing, and advanced tablet console, the SPIRIT 8.0T provides clinicians with a comprehensive platform for neurological rehabilitation, gait training, therapeutic exercise, and clinical exercise testing.
